NCV8187AMN120TAG - onsemi

Description: Low Vin 1.5 V; Ultra Low Noise 15 µVrms; High PSRR 75 dB at 1 kHz; Low Vout from 0.8 V; Power Good Signal; Available in DFN6 2x2 mm and DFN8 3x3mm packages; 150C operating Junction temperature

Download NCV8187AMN120TAG Model
Schematic

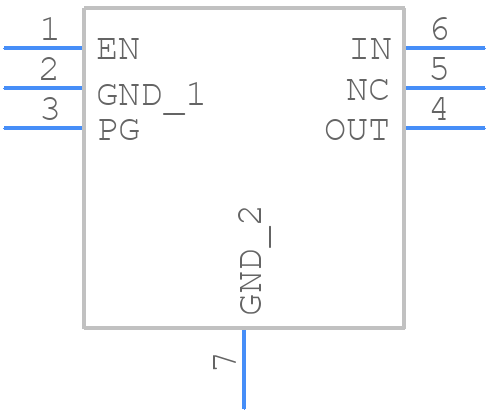

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8187AMN120TAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW6 3X3, 0.95P CASE 507AW ISSUE O DATE 21 MAY 2019 GENERIC MARKING DIAGRAM* XXXXX = Specific Device Co
click to zoom
3D Models
NCV8187AMN120TAG - onsemi  - 3D model - Small Outline No-lead - DFNW6 3X3, 0.95P CASE 507AW ISSUE O DATE 21 MAY 2019 GENERIC MARKING DIAGRAM* XXXXX = Specific Device Co
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for NCV8187AMN120TAG
  • Part Number NCV8187AMN120TAG
  • Manufacturer onsemi
  • Pin Count 7
  • Part Category Integrated Circuit
  • Package Category Small Outline No-lead
  • Footprint Name Small Outline No-lead - DFNW6 3X3, 0.95P CASE 507AW ISSUE O DATE 21 MAY 2019 GENERIC MARKING DIAGRAM* XXXXX = Specific Device Co
  • Released Date Dec 2, 2021
  • Last Modified Date Jan 22, 2025 4:53 PM UTC
  • Pinout / Pin List Click Here (Member Only)

NCV8187AMN120TAG Details

  • Manufacturer Part Number:

    NCV8187AMN120TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-6

  • Package Description:

    WDFNW6, 6-PIN

  • Manufacturer Package Code:

    506DK

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2019-06-05

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.495 V

  • Dropout Voltage1-Nom:

    0.325 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    1.235 V

  • Output Voltage1-Min:

    1.165 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,38

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.95 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.92%

  • Width:

    3 mm

NCV8187AMN120TAG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 2x2 mm, using a 2-ounce copper layer, and ensuring a minimum of 10 mm clearance around the device to allow for airflow. Additionally, using thermal vias and a heat sink can further improve thermal performance.
  • To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating temperature range of -40°C to 150°C, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper PCB design and layout guidelines.
  • The recommended soldering conditions for the NCV8187AMN120TAG include a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that meets the IPC J-STD-020 standard. It is also essential to follow the manufacturer's recommended soldering profile and use a solder with a melting point above 217°C.
  • To handle ESD protection during handling and assembly, it is recommended to follow proper ESD handling procedures, use ESD-protective packaging and materials, and ensure that all personnel handling the device are grounded. Additionally, consider using ESD-protective devices and equipment during assembly and testing.
  • The recommended storage and handling conditions for the NCV8187AMN120TAG include storing the device in its original packaging, keeping it away from direct sunlight and moisture, and maintaining a storage temperature range of -40°C to 30°C. It is also essential to handle the device by the body and avoid touching the pins or leads.
