NCV8187AMT120TAG - onsemi

Description: Low Vin 1.5 V; Ultra Low Noise 15 µVrms; High PSRR 75 dB at 1 kHz; Low Vout from 0.8 V; Power Good Signal; Available in DFN6 2x2 mm and DFN8 3x3mm packages; 150C operating Junction temperature

Download NCV8187AMT120TAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

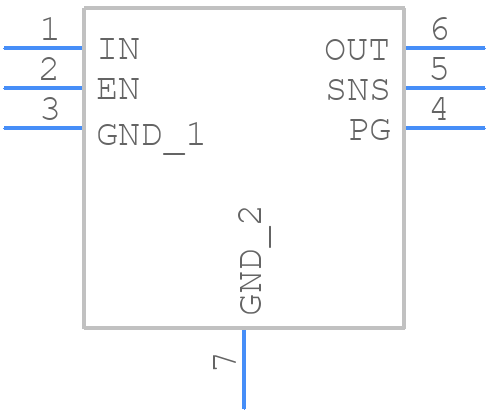

NCV8187AMT120TAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8187AMT120TAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE B
click to zoom
3D Models
NCV8187AMT120TAG - onsemi - 3D model - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE B
click to zoom

NCV8187AMT120TAG Details

  • Manufacturer Part Number:

    NCV8187AMT120TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Package Description:

    WDFNW6, 6-PIN

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2019-06-05

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.495 V

  • Dropout Voltage1-Nom:

    0.325 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    1.235 V

  • Output Voltage1-Min:

    1.165 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.92%

  • Width:

    2 mm

NCV8187AMT120TAG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
  • The NCV8187AMT120TAG requires a specific biasing scheme to operate within its recommended operating conditions. Ensure that the input voltage is within the recommended range (12V to 18V), and the output voltage is set to the desired level using the feedback resistors. Consult the datasheet for the recommended biasing scheme and component values.
  • The reliability and lifespan of the NCV8187AMT120TAG are heavily dependent on the quality of the input and output capacitors, as well as the thermal management of the device. Ensure that high-quality capacitors with low ESR and high ripple current ratings are used, and that the device is properly cooled to prevent overheating.
  • To troubleshoot issues with the NCV8187AMT120TAG, start by verifying the input voltage, output voltage, and feedback loop stability. Check for any signs of oscillation, such as ringing or instability, and ensure that the device is properly decoupled and filtered. Consult the datasheet and application notes for troubleshooting guidelines and techniques.
  • To ensure EMI and EMC compliance, follow proper PCB layout and design guidelines, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering techniques. Ensure that the device is properly decoupled and filtered, and that the output is properly terminated to prevent EMI radiation.
