NCV8187AMTWADJTAG - onsemi

Description: Low Vin 1.5 V; Ultra Low Noise 15 µVrms; High PSRR 75 dB at 1 kHz; Low Vout from 0.8 V; Power Good Signal; Available in DFN6 2x2 mm and DFN8 3x3mm packages; 150C operating Junction temperature

Download NCV8187AMTWADJTAG Model

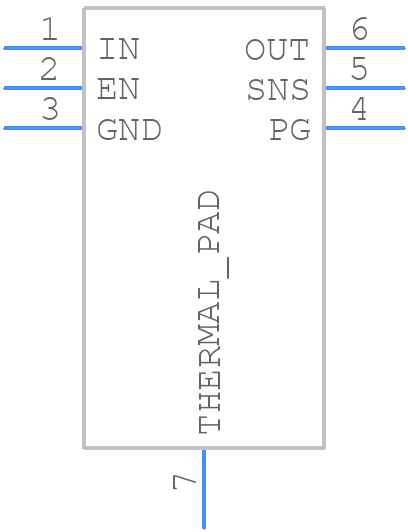

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8187AMTWADJTAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6_1
click to zoom
3D Models
NCV8187AMTWADJTAG - onsemi  - 3D model - Small Outline No-lead - WDFN6_1
click to zoom

NCV8187AMTWADJTAG Details

  • Manufacturer Part Number:

    NCV8187AMTWADJTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW-6

  • Package Description:

    DFN-6

  • Manufacturer Package Code:

    511DW

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2020-08-11

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • Input-Output Voltage Differential-Max:

    4.7 V

  • Input-Output Voltage Differential-Min:

    1 V

  • JESD-30 Code:

    S-PDSO-N6

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.004

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.2 A

  • Output Voltage1-Max:

    5.2 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCV8187AMTWADJTAG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the device away from heat sources and ensure good airflow.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow. Also, consider using a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device.
  • Yes, the NCV8187AMTWADJTAG is qualified to automotive and industrial standards, making it suitable for high-reliability applications. However, additional testing and validation may be required.
  • Check the input voltage, output load, and feedback resistors. Ensure the device is properly configured and the output voltage is within the specified range. Use an oscilloscope to monitor the output voltage and check for oscillations or noise.
