A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad. Refer to onsemi's application note AND84045/D for more details.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable heat sink, and consider derating the device's power dissipation. Also, ensure that the PCB is designed to withstand the high temperatures and that the components are selected accordingly.
The NCV84045DR2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded.
Yes, the NCV84045DR2G is AEC-Q100 qualified, making it suitable for automotive applications. However, ensure that the device is used within its recommended operating conditions and that the system design meets the required automotive standards.
The recommended soldering profile for the NCV84045DR2G is a peak temperature of 260°C (500°F) for a maximum of 10 seconds. Refer to onsemi's application note AND84045/D for more details on soldering and assembly guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV84045DR2G Overview

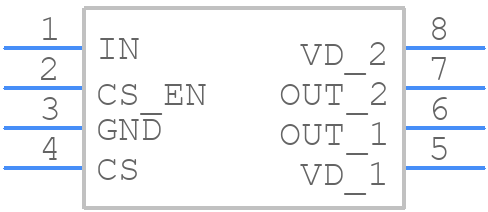

Use the download button to access the NCV84045DR2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV84,
or try a keyword search, such as Peripheral Drivers
