Description:Short Circuit Protection; Thermal Shutdown with Automatic Restart; Open Load Detection in ON and OFF state; Diagnostic Output; Undervoltage and Overvoltage Shutdown; Very Low Standby Current; ESD Protection
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
1
Input Characteristics:
STANDARD
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-DRAIN
Output Current Flow Direction:
SINK
Output Current-Max:
2 A
Output Peak Current Limit-Nom:
9 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
36 V
Supply Voltage-Min:
6 V
Supply Voltage-Nom:
13.5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.03 µs
Turn-on Time:
0.04 µs
Width:
3.9 mm
NCV8460ADR2G Frequently Asked Questions (FAQs)
A good PCB layout for the NCV8460ADR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces carrying high-frequency signals. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
To ensure the NCV8460ADR2G operates within its safe operating area (SOA), monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
The recommended input capacitor type for the NCV8460ADR2G is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation.
To optimize the compensation network for the NCV8460ADR2G, use the recommended values for the compensation components (R1, R2, C1, and C2) provided in the datasheet. You can also use simulation tools or empirical methods to fine-tune the compensation network for your specific application.
The maximum output current capability of the NCV8460ADR2G is 2A. However, the actual output current capability may be limited by the thermal performance of the IC and the PCB design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV8460ADR2G Overview

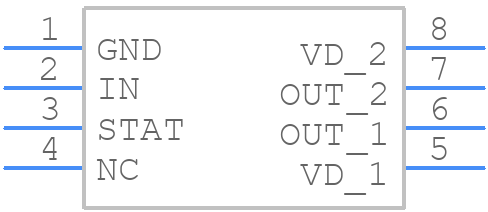

Use the download button to access the NCV8460ADR2G schematic symbol, PCB footprint, and 3D model.
