The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The recommended input capacitors are X5R or X7R ceramic capacitors with a voltage rating of 50V or higher, and a capacitance value of 10uF to 22uF. The recommended output capacitors are also X5R or X7R ceramic capacitors with a voltage rating of 25V or higher, and a capacitance value of 10uF to 22uF.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly connected and of the correct value.
The recommended method for soldering this device is reflow soldering using a solder paste with a peak temperature of 260°C to 280°C. Hand soldering is not recommended due to the device's small size and high pin count.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV86602BD50R2G Overview

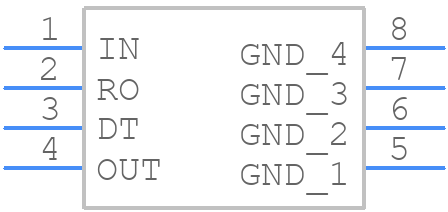

Use the download button to access the NCV86602BD50R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV86,
or try a keyword search, such as Linear Regulator ICs
