The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help reduce thermal resistance.
To ensure reliable startup and shutdown of the NCV8668ABD250R2G, it is recommended to follow a soft-start sequence, where the input voltage is ramped up slowly to prevent inrush currents. Additionally, a capacitor can be added between the VIN and GND pins to filter out noise and ensure a clean startup.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage can cause damage to the internal logic circuitry. It is recommended to use a voltage divider or a level shifter to ensure the EN pin voltage remains within the specified range.
The NCV8668ABD250R2G is rated for operation up to 150°C, but it is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensuring good thermal design and heat sinking can help maintain reliable operation in high-temperature environments.
To troubleshoot issues with the device not turning on or not regulating the output voltage, check the input voltage, EN pin voltage, and output voltage using an oscilloscope or multimeter. Verify that the input voltage is within the specified range, the EN pin is properly biased, and the output voltage is within the expected range. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV8668ABD250R2G Overview

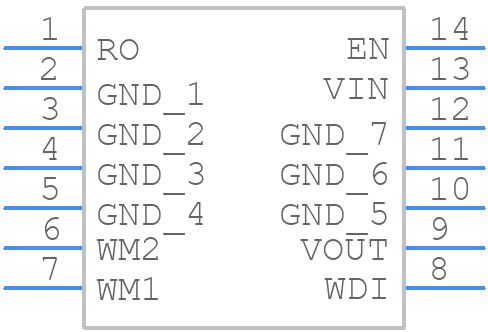

Use the download button to access the NCV8668ABD250R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV86,
or try a keyword search, such as Linear Regulator ICs
