NCV8720BMT110TBG - onsemi

Description: 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 350 mA; Ultra-Low Dropout of Typ. 110 mV; Fixed Output Voltage options from 0.8 V to 2.1 V; 110 mV typical dropout at the full 350 mA load.; Guaranteed Output Current from 0 mA to 350 mA

Download NCV8720BMT110TBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

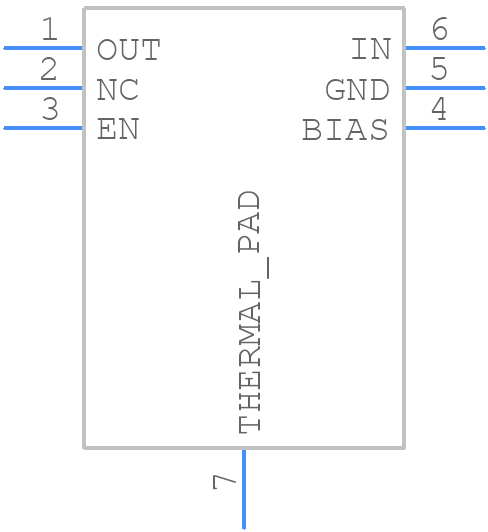

NCV8720BMT110TBG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8720BMT110TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE B
click to zoom
3D Models
NCV8720BMT110TBG - onsemi - 3D model - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE B
click to zoom

NCV8720BMT110TBG Details

  • Manufacturer Part Number:

    NCV8720BMT110TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2016-12-06

  • Manufacturer:

    onsemi

  • YTEOL:

    7.7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.11 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    4.5 V

  • Input Voltage-Min:

    1.6 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.35 A

  • Output Voltage1-Max:

    1.122 V

  • Output Voltage1-Min:

    1.078 V

  • Output Voltage1-Nom:

    1.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

NCV8720BMT110TBG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a thermal layer is recommended. Refer to the onsemi application note AND9233/D for more details.
  • To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and ensure that the device is operated within its specified temperature range. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
  • The recommended input capacitors are 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 25V or higher. The recommended output capacitors are 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. The capacitor values and types may vary depending on the specific application requirements and operating conditions.
  • To troubleshoot issues with the device's enable pin, ensure that the enable pin is properly connected to a logic-level signal source, and that the signal is within the specified voltage range. Verify that the enable pin is not floating or shorted to any other pin. Also, check the device's datasheet for specific enable pin requirements and recommendations.
  • Operating the device beyond its specified current rating can lead to reduced reliability, increased thermal stress, and potentially cause permanent damage to the device. It is essential to ensure that the device is operated within its specified current rating to maintain its performance, reliability, and lifespan.
