Description:Average Current Mode; 0.8 V Reference Voltage; 4.5 V to 38 V Input Range; Input Undervoltage Lockout; Low Quiescent Current in Sleep Mode; Internally controlled soft-start; Programmable Switching Frequency up to 500kHz; Switching Frequency can be Synchronized up to 600kHz; Average Output Current Limiting; Peak Output Current Limiting; 6.0 V Low-dropout Linear Regulator Auxiliary Output; Thermal Shutdown Protection; +/-2% Output Voltage Accuracy over temperature; -40 °C to 150 °C Operating Junction Temperatu
A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the IC and connect it to a heat sink or a thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering and assembly techniques.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To troubleshoot OVP and UVP issues, start by verifying the input voltage and ensuring it's within the recommended range. Check the voltage monitoring circuitry and ensure it's functioning correctly. Also, review the device's fault detection and protection mechanisms to identify the root cause of the issue.
To minimize EMC and EMI issues, follow proper PCB layout and design guidelines, use shielding and filtering components, and ensure that the device is properly grounded. Additionally, consider using EMI filters and common-mode chokes to reduce noise and interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV8856ADBR2G Overview

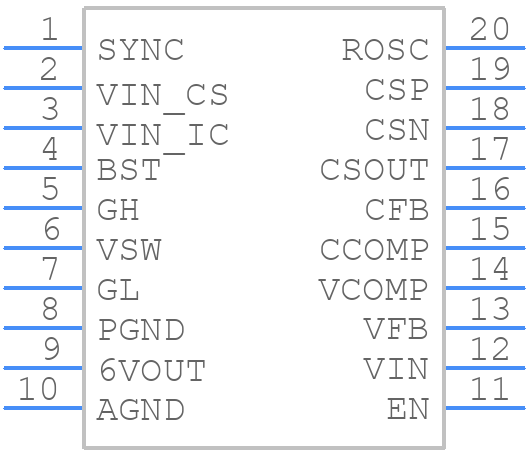

Use the download button to access the NCV8856ADBR2G schematic symbol, PCB footprint, and 3D model.
