Description:Peak Current Mode Control with Internal Slope Compensation; 1.2 V 2% Reference voltage; Wide Input Voltage Range of 3.2 V to 40 Vdc, 45 V Load Dump; Input undervoltage lockout (UVLO); Internal SoftStart; Low quiescent current in sleep mode; Cycle-by-cycle current limit protection; Hiccup-mode short-circuit protection (SCP); Thermal shutdown (TSD)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2oz copper thickness is recommended, and thermal vias can be used to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and that the output voltage is within the specified tolerance. Also, check for any signs of overheating, and ensure that the device is properly soldered and connected.
Operating the device beyond its specified maximum ratings can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device is operated within its specified ratings to ensure reliable operation and to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV887001D1R2G Overview

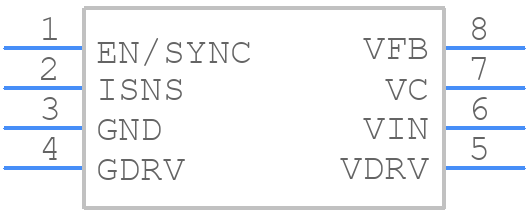

Use the download button to access the NCV887001D1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV88,
or try a keyword search, such as Switching Regulator or Controllers
