Description:Peak Current Mode Control with Internal Slope Compensation; 1.2 V 2% Reference voltage; Wide Input Voltage Range of 3.2 V to 40 Vdc, 45 V Load Dump; Input undervoltage lockout (UVLO); Internal SoftStart; Low quiescent current in sleep mode; Cycle-by-cycle current limit protection; Hiccup-mode short-circuit protection (SCP); Thermal shutdown (TSD)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of solder mask.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 150°C). Use a suitable heat sink or thermal interface material to maintain a safe junction temperature. Also, consider using a thermistor or thermocouple to monitor the device temperature.
The recommended soldering conditions for NCV887100D1R2G are: peak temperature 260°C, time above 217°C 30 seconds, and time above 200°C 60 seconds. Use a solder with a melting point above 217°C, and avoid using solder with a high silver content.
To handle ESD protection for NCV887100D1R2G, use an ESD-protected workstation, wear an ESD strap, and use ESD-protected packaging and storage materials. Avoid touching the device pins or handling the device in a way that could generate static electricity.
The recommended storage conditions for NCV887100D1R2G are: temperature range -40°C to 30°C, relative humidity 60% or less, and protection from direct sunlight and moisture. Store the device in its original packaging or in a dry, clean environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV887100D1R2G Overview

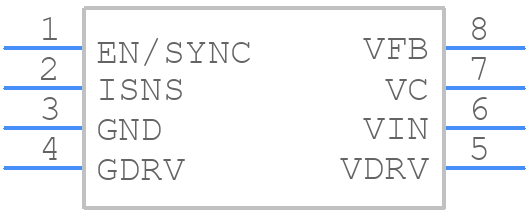

Use the download button to access the NCV887100D1R2G schematic symbol, PCB footprint, and 3D model.
