NCV887101D1R2G - onsemi

Description: Obsolete - Non-Synchronous Boost Controller, Automotive Grade

Download NCV887101D1R2G Model

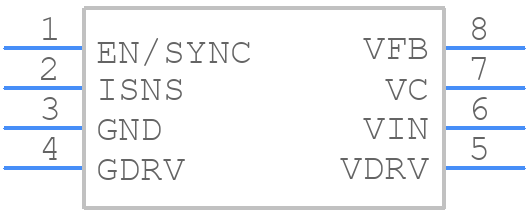

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV887101D1R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCV887101D1R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCV887101D1R2G Details

  • Manufacturer Part Number:

    NCV887101D1R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    13.2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1100 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV887101D1R2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and using multiple vias to connect the thermal pad to the ground plane. Additionally, keeping the thermal pad away from other heat sources and using a thermal interface material (TIM) can help to improve thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the derating guidelines provided in the datasheet, and to ensure that the device is operated within its specified temperature range. Additionally, using a heat sink or thermal management system can help to reduce the device's junction temperature and improve reliability.
  • The recommended soldering conditions for the NCV887101D1R2G involve using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds, and ensuring that the device is not exposed to temperatures above 300°C (572°F) during the soldering process.
  • To troubleshoot issues with the device's output voltage, check the input voltage, output load, and feedback resistors to ensure they are within the specified ranges. Also, verify that the device is properly connected and that there are no shorts or opens on the PCB. If the issue persists, consult the datasheet or contact onsemi support for further assistance.
  • The NCV887101D1R2G is designed to meet EMI and EMC requirements, but it is still important to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering as needed. Additionally, ensure that the device is properly decoupled and that the output is filtered to reduce EMI emissions.
