NCV887302D1R2G - onsemi

Description: Peak Current Mode Control with Internal Slope Compensation; 0.2 V 2% Reference Voltage for Constant Current Loads; Wide Input Voltage Range of 3.2 V to 45 V; Input Undervoltage Lockout; Internal Soft Start; Low Quiescent Current in Sleep Mode; Cycle by Cycle Current Limit Protection; Hiccup Mode Overcurrent Protection; Thermal Shutdown

Download NCV887302D1R2G Model

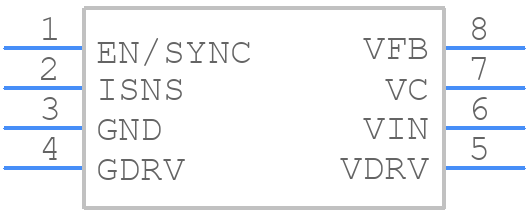

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV887302D1R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCV887302D1R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCV887302D1R2G Details

  • Manufacturer Part Number:

    NCV887302D1R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    44 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    13.2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    440 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV887302D1R2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • Yes, the NCV887302D1R2G is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q100 qualification and follow the recommended design and testing guidelines to ensure compliance with the specific application requirements.
  • To troubleshoot issues related to the device's overcurrent protection feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is correctly connected and that the device is not overheating. Also, review the device's datasheet and application notes for guidance on troubleshooting overcurrent protection issues.
