A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
The NCV887720D1R2G has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. Additionally, the device is designed to prevent latch-up, but it's essential to follow the recommended operating conditions and avoid excessive voltage or current stress.
Yes, the NCV887720D1R2G is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q100 qualification and follow the recommended operating conditions and design guidelines to ensure reliable operation in these applications.
To troubleshoot issues with the device, start by reviewing the system design and ensuring that the device is operated within the recommended conditions. Check for proper thermal design, PCB layout, and component selection. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV887720D1R2G Overview

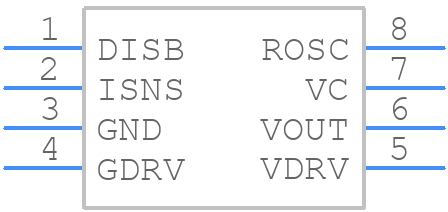

Use the download button to access the NCV887720D1R2G schematic symbol, PCB footprint, and 3D model.
