Part Image

NCV890104MWR2G - onsemi

Description: Internal N−Channel Power Switch; Low VIN Operation Down to 4.5 V; High VIN Operation to 36 V; Withstands Load Dump to 40 V; 2 MHz Free−running Switching Frequency; Adjustable Spread Spectrum; Reset with Adjustable Delay; Logic level Enable Input Can be Directly Tied to Battery; 1.4 A (min) Cycle−by−Cycle Peak Current Limit; Short Circuit Protection enhanced by Frequency Foldback; ±1.75% Output Voltage Tolerance; Output Voltage Adjustable Down to 0.8 V; 1.4 Millisecond Internal Soft−Start; Low Shutdown Curre

Download NCV890104MWR2G Model

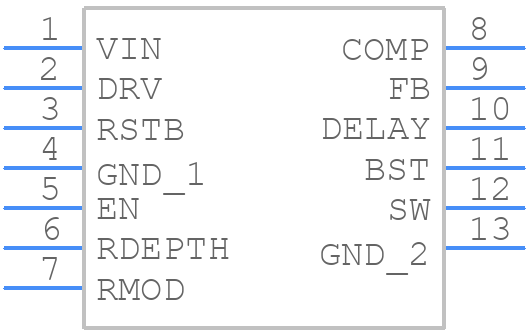

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV890104MWR2G - onsemi PCB footprint - Other - Other - DFN12 CASE 506CE
click to zoom
3D Models
NCV890104MWR2G - onsemi  - 3D model - Other - DFN12 CASE 506CE
click to zoom

NCV890104MWR2G Details

  • Manufacturer Part Number:

    NCV890104MWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN12, 4x4, 0.65P

  • Package Description:

    DFN-12

  • Manufacturer Package Code:

    506CE

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    44 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC12,.16,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NCV890104MWR2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV890104MWR2G is -40°C to 150°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm, and to follow the layout guidelines provided in the datasheet.
  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of at least 2x the input voltage.
  • Yes, the NCV890104MWR2G is qualified to automotive and industrial standards, making it suitable for high-reliability applications.
  • The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
