NCV891330PD50R2G - onsemi

Description: 30 µA Iq in Light Load Condition; 3.0 A maximum output current in PWM mode; Internal N-channel Power Switch; VIN operating range 3.7 V to 36.5 V; Withstands Load Dump to 45 V; Logic level Enable pin can be tied to battery; Fixed Output Voltage of 5.0 V, 4.0 V or 3.3 V; 2 MHz Free-running Switching Frequency; +/-2 % Output Voltage Accuracy; NCV Prefix for Automotive Requiring Site and Control Changes

Download NCV891330PD50R2G Model

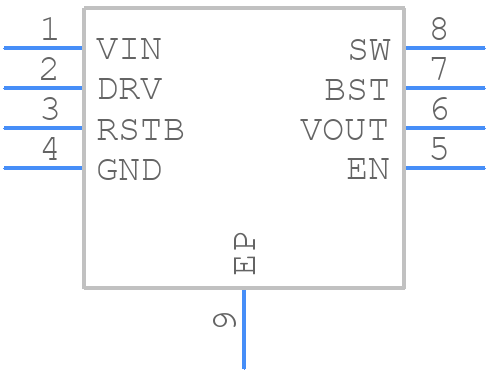

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV891330PD50R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 EP CASE 751AC ISSUE B
click to zoom
3D Models
NCV891330PD50R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 EP CASE 751AC ISSUE B
click to zoom

NCV891330PD50R2G Details

  • Manufacturer Part Number:

    NCV891330PD50R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 EP

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751AC

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    44 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AS LDO REGULATOR

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.7 V

  • Input Voltage-Nom:

    13.2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.9 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV891330PD50R2G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an internal copper plane or a heat sink.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce the junction-to-case thermal resistance. Monitor the device's thermal performance and adjust the system design as needed.
  • Exceeding the maximum junction temperature (TJ) can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It is essential to ensure that the device operates within the recommended temperature range.
  • Implement a robust EOS protection scheme, including TVS diodes, resistors, and capacitors, to prevent damage from voltage transients and electrostatic discharge (ESD). Follow the recommended PCB layout and component selection guidelines.
  • Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 30s, and time above 183°C 90s. Use a solder with a melting point below 217°C to prevent damage to the device.
