NCV896530MWATXG - onsemi

Description: Synchronous Rectification; 2.1 MHz Switching Frequency; Thermal Limit and Short Circuit Protection; 2 Outputs are 180° Out-of-Phase; Internal MOSFETs

Download NCV896530MWATXG Model
Schematic

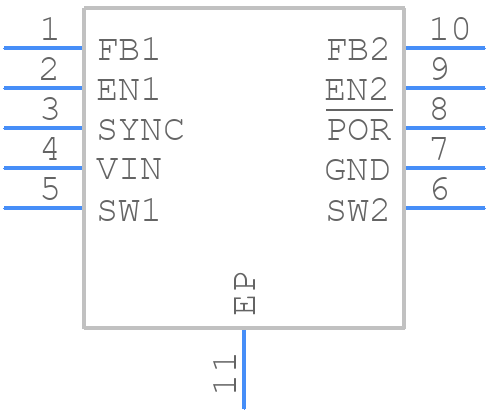

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV896530MWATXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10 3x3, 0.5P
click to zoom
3D Models
NCV896530MWATXG - onsemi  - 3D model - Small Outline No-lead - DFN10 3x3, 0.5P
click to zoom

NCV896530MWATXG Details

  • Manufacturer Part Number:

    NCV896530MWATXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    485C

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    49 Weeks

  • Date Of Intro:

    2020-03-17

  • Manufacturer:

    onsemi

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2600 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV896530MWATXG Frequently Asked Questions (FAQs)

  • The maximum input voltage is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure a stable output voltage, make sure to use the recommended output capacitor (22μF ceramic or 10μF tantalum) and keep the output voltage sense lines as short as possible.
  • The EN (Enable) pin is used to turn the converter on or off. Connect EN to VIN to enable the converter, or connect it to GND to disable it. You can also use an external signal to control the EN pin.
  • The output current capability depends on the input voltage, output voltage, and thermal conditions. Use the datasheet's thermal derating curves and output current calculation formula to determine the maximum output current for your specific application.
  • The device has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet to prevent overheating.
