ND-FR10H - NKK Switches

Description: Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 5VDC

Download ND-FR10H Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ND-FR10H model

Email notifications will be applied after download.

Send part feedback

Symbol

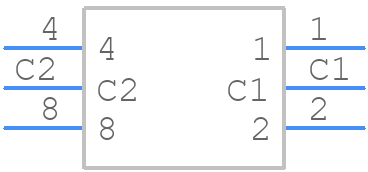

ND-FR10H - NKK Switches - PCB symbol

PCB Footprints

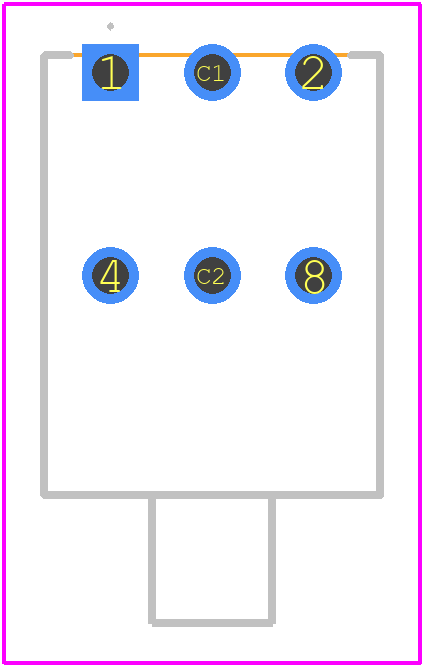

ND-FR10H - NKK Switches PCB footprint - Other - Other - ND-FR10H-1

3D Models

ND-FR10H - NKK Switches - 3D model - Other - ND-FR10H-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for ND-FR10H
Part Number ND-FR10H
Manufacturer NKK Switches
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - ND-FR10H-1
Released Date May 13, 2023
Last Modified Date May 14, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

ND-FR10H Details

Manufacturer Part Number:
ND-FR10H
Manufacturer:
NKK Switches

Trust Checks

Community Provided

System Verified

Community Approved

ND-FR10H Overview

Use the download button to access the ND-FR10H schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ND-FR, or try a keyword search, such as Rotary Switches
