NDH2415SC - Murata Electronics

Description: Murata Power Solutions 3W Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout ±15V dc, I/O isolation 1kV dc

Download NDH2415SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

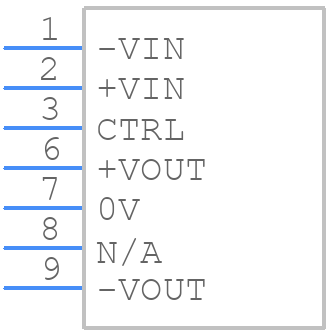

Symbol
NDH2415SC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NDH2415SC - Murata Electronics PCB footprint - Other - Other - NDH2415SC-1
click to zoom
3D Models
NDH2415SC - Murata Electronics - 3D model - Other - NDH2415SC-1
click to zoom

NDH2415SC Details

  • Manufacturer Part Number:

    NDH2415SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SIP-9/7

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO HAS -15V OUTPUT

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    82%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XSIP-T7

  • JESD-609 Code:

    e3

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO
