NDL0512SC - Murata Electronics

Description: Murata Power Solutions 2W Isolated DC-DC Converter, Vin 4.5 → 9 V dc, Vout 12V dc, I/O isolation 1kV dc

Download NDL0512SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

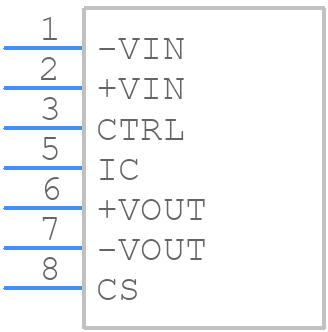

NDL0512SC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NDL0512SC - Murata Electronics PCB footprint - Other - Other - NDL0512SC-1
click to zoom
3D Models
NDL0512SC - Murata Electronics - 3D model - Other - NDL0512SC-1
click to zoom

NDL0512SC Details

  • Manufacturer Part Number:

    NDL0512SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SIP-8/7

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, UL

  • Efficiency (Main Output):

    71%

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSIP-T7

  • Length:

    21.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.75%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.167 A

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP7/8,.12

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    SHORT CIRCUIT

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.0035 Vrms

  • Seated Height-Max:

    11.35 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

NDL0512SC Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB land pattern in their documentation, which includes a rectangular pad with a size of 1.2mm x 1.4mm and a thermal via diameter of 0.3mm.
  • To minimize the risk of damage, it's recommended to follow the soldering temperature profile specified in the datasheet, which is 260°C for 10 seconds or less. Additionally, using a soldering iron with a temperature control and a low-temperature solder can help reduce the risk of damage.
  • The maximum allowable voltage for the NDL0512SC is not explicitly stated in the datasheet. However, as a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation. In this case, the maximum allowable voltage would be around 15-16V.
  • The ESR of the NDL0512SC can be calculated using the impedance vs. frequency graph provided in the datasheet. The ESR is typically measured at a frequency of 100 kHz, and for the NDL0512SC, it's around 0.12 ohms.
  • Yes, the NDL0512SC is designed for high-frequency applications up to 1 GHz. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure that it's not operated near the SRF to avoid unwanted resonances.
