NDP-07V - Diptronics

Description: DIP Switches/SIP Switches Dip switch SPST Standard

Download NDP-07V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NDP-07V model

Email notifications will be applied after download.

Send part feedback

Symbol

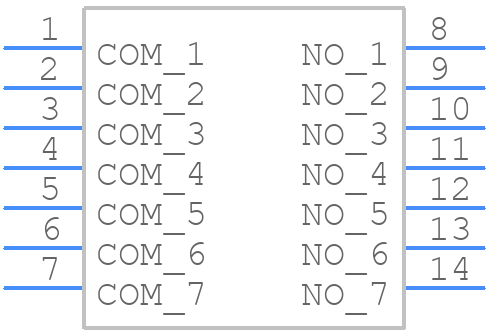

NDP-07V - Diptronics - PCB symbol

PCB Footprints

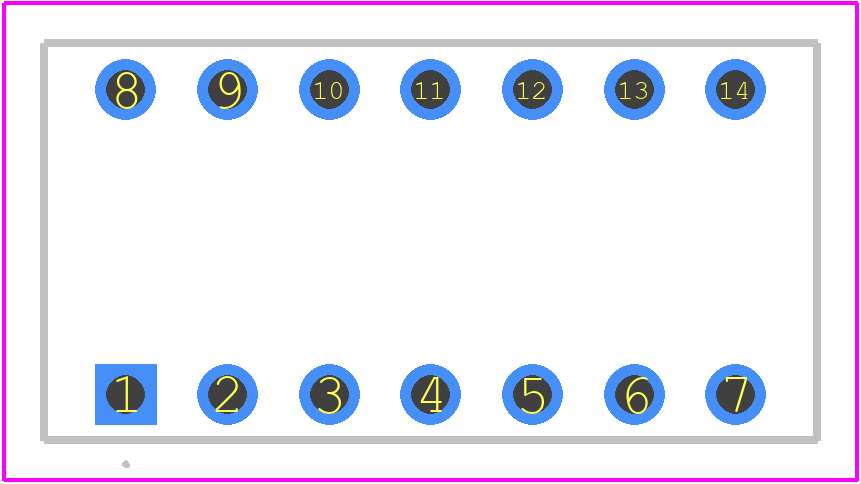

NDP-07V - Diptronics PCB footprint - Other - Other - NDP-07V-1

3D Models

NDP-07V - Diptronics - 3D model - Other - NDP-07V-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for NDP-07V
Part Number NDP-07V
Manufacturer Diptronics
Pin Count 14
Part Category Switch
Package Category Other
Footprint Name Other - NDP-07V-1
Released Date Oct 2, 2024
Last Modified Date Oct 2, 2024 5:54 AM UTC
Pinout / Pin List Click Here (Member Only)

NDP-07V Details

Manufacturer Part Number:
NDP-07V
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Diptronics Manufacturing Inc
YTEOL:
8
Switch Type:
PIANO DIP SWITCH
