Diptronics recommends a 4-layer PCB with a dedicated ground plane and thermal vias under the device to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the top and bottom layers.
Diptronics suggests using a robust PCB mounting method, such as screw-down or adhesive mounting, and ensuring the device is properly secured to the PCB. Additionally, consider using a vibration-dampening material, like a silicone-based adhesive, to reduce mechanical stress.
According to Diptronics, the NDPL-08V can withstand voltage transients up to 1.5 times the rated voltage (12V) for a maximum duration of 100ms. However, it's recommended to implement proper voltage regulation and transient suppression to ensure reliable operation.
While the NDPL-08V is rated for operation up to 125°C, Diptronics recommends derating the device's power output by 1% per degree above 85°C to ensure reliable operation. Additionally, ensure proper thermal management and consider using a heat sink or thermal interface material to maintain a safe junction temperature.
Diptronics recommends implementing a human-body model (HBM) ESD protection circuit with a minimum of 2kV rating to prevent damage to the device. This can be achieved using a combination of resistors, capacitors, and TVS diodes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NDPL-08V Overview

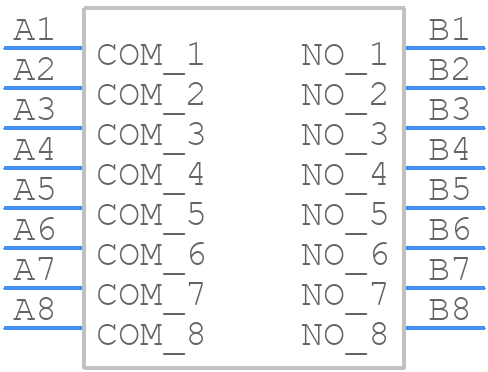

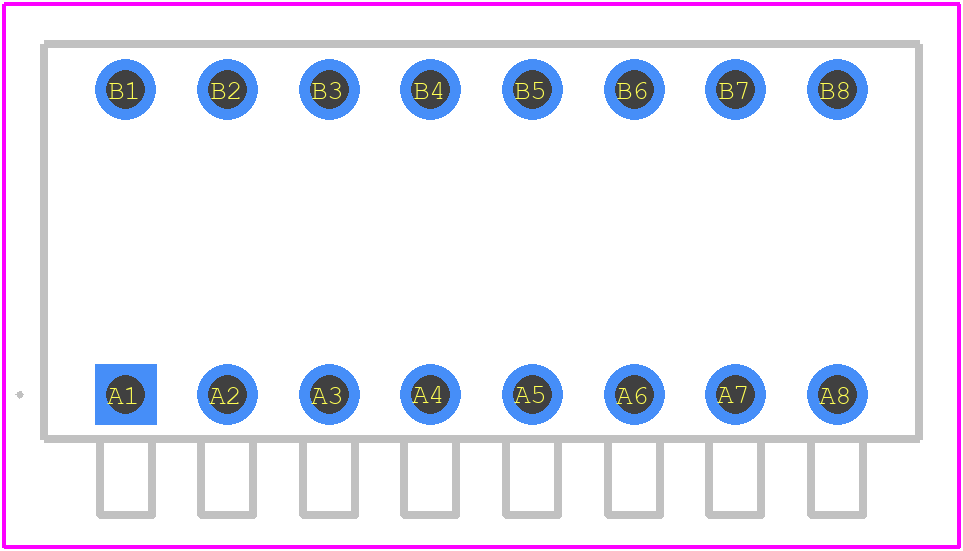

Use the download button to access the NDPL-08V schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NDPL-,
or try a keyword search, such as DIP Switches
