NDS-05V - Diptronics

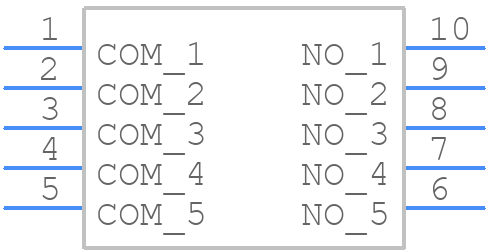

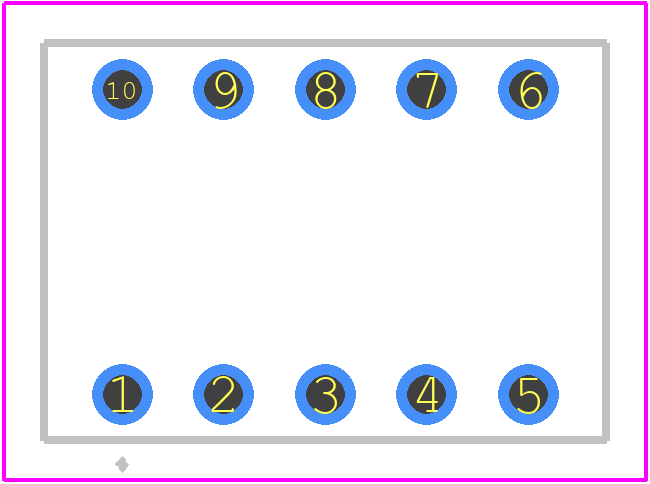

NDS-05V Details

• Manufacturer Part Number:

  NDS-05V

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  Diptronics Manufacturing Inc

• YTEOL:

  6.7

• Actuator Length:

  0.047 inch

• Actuator Type:

  RAISED TYPE

• Body Breadth:

  9.9 mm

• Body Height:

  5.85 mm

• Body Length or Diameter:

  14.06 mm

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.025 A

• Contact (DC) Max Rating R Load:

  0.025A@24VDC

• Contact Resistance:

  0.05 mΩ

• Contact Voltage(DC)-Max:

  24 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  2000 Cycle(s)

• End Contact Plating:

  GOLD

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Switch Sections:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PCB Hole Count:

  10

• Packing Method:

  TUBE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Terminal Length:

  0.126 inch

• Termination Type:

  SOLDER
