The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm. Over-tightening can damage the terminals.
Yes, the NDS-06-V is designed to withstand vibrations up to 10g (IEC 60068-2-6) and can be used in high-vibration environments.
The operating temperature range for the NDS-06-V is -40°C to 85°C. However, the storage temperature range is -40°C to 125°C.
The NDS-06-V is compatible with wave soldering, reflow soldering, and hand soldering. However, it's recommended to follow the soldering profile recommended by APEM Inc.
Yes, the NDS-06-V is designed to operate in humid environments with a relative humidity of up to 95% (non-condensing).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NDS-06-V Overview

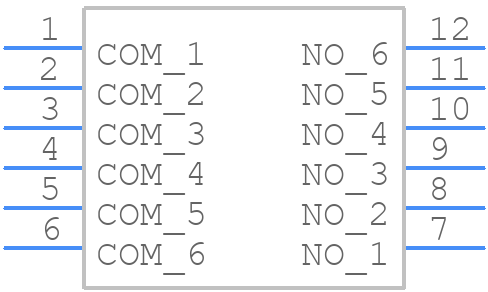

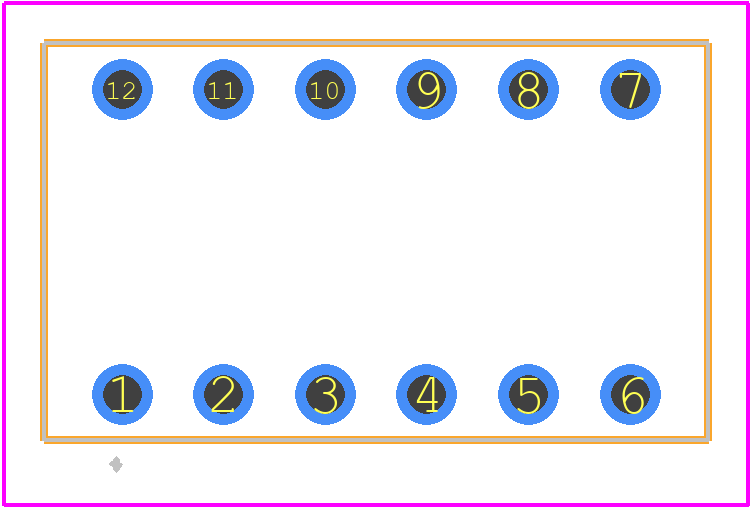

Use the download button to access the NDS-06-V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NDS-0,
or try a keyword search, such as DIP Switches
