NDS-08-V footprint, schematic symbol and 3D model by Apem

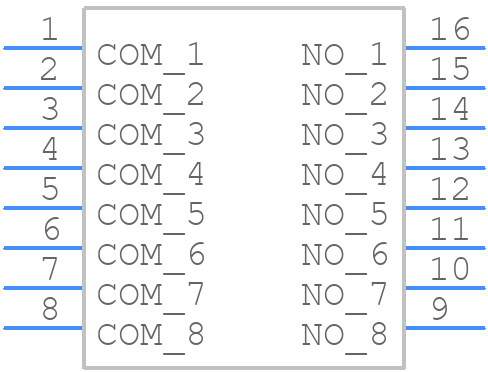

Symbol

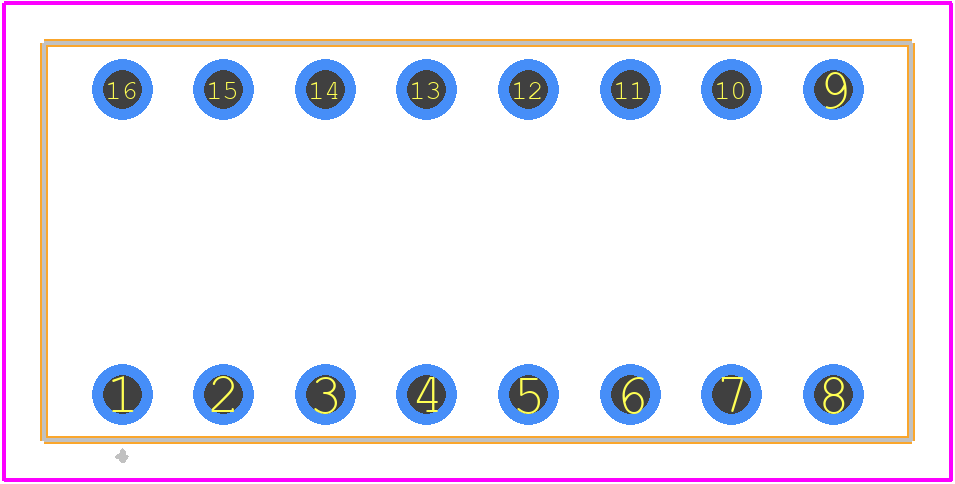

PCB Footprints

3D Models

NDS-08-V Details

The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm. Over-tightening can damage the terminals.
Yes, the NDS-08-V is designed to withstand vibrations up to 10G (according to IEC 60068-2-6) and is suitable for use in high-vibration environments.
The operating temperature range for the NDS-08-V is -40°C to 85°C. However, the device can be stored at temperatures between -40°C and 125°C.
The NDS-08-V is compatible with wave soldering, reflow soldering, and hand soldering. However, it's recommended to follow the soldering profile recommended by APEM Inc to ensure reliable connections.
The NDS-08-V is designed to operate in environments with relative humidity up to 95% (non-condensing). However, it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting.

Expert Contribution

System Verified

Community Approved

Use the download button to access the NDS-08-V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NDS-0, or try a keyword search, such as DIP Switches
