Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NDS-10-V
- Part Number NDS-10-V
- Manufacturer Apem
- Pin Count 20
- Part Category Switch
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - NDS(R)
- Released Date Jun 29, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NDS-10-V Details
-
Manufacturer Part Number:
NDS-10-V
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
UK
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
APEM Inc
-
JESD-609 Code:
e4
-
Switch Type:
SLIDE DIP SWITCH
-
Terminal Finish:
Gold (Au)
NDS-10-V Frequently Asked Questions (FAQs)
-
APEM recommends a torque of 0.5 Nm to 1.5 Nm for the screw terminals to ensure reliable connections.
-
Yes, the NDS-10-V is designed to withstand vibrations up to 10g (IEC 60068-2-6) and can be used in high-vibration environments with proper mounting and installation.
-
The NDS-10-V has a compact design with a pin spacing of 2.54mm, making it compatible with most standard PCB layouts. However, it's recommended to verify the PCB layout and design before installation.
-
The NDS-10-V operates within a temperature range of -40°C to 85°C, making it suitable for most industrial and commercial applications.
-
The NDS-10-V has a rating of IP40 (IEC 60529) and can withstand humid environments, but it's not designed for immersion in water or exposure to direct water jets.
Trust Checks
Expert Contribution
System Verified
Community Approved
NDS-10-V Overview

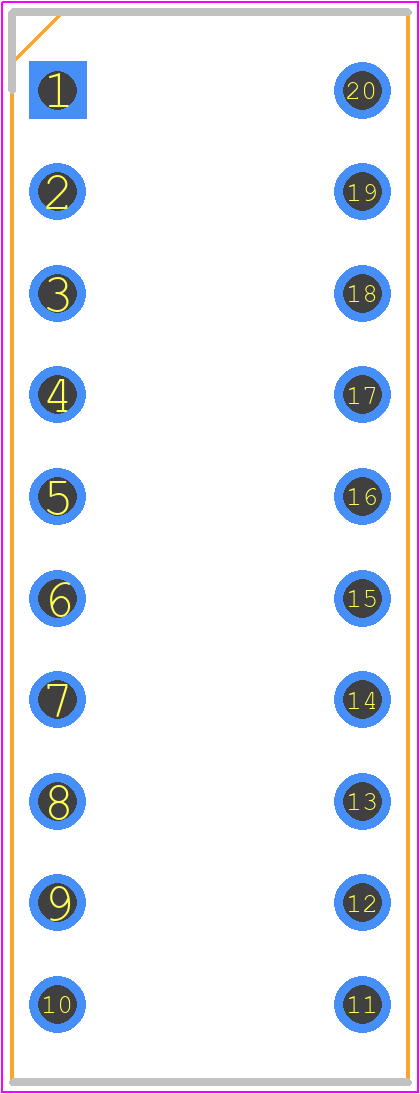

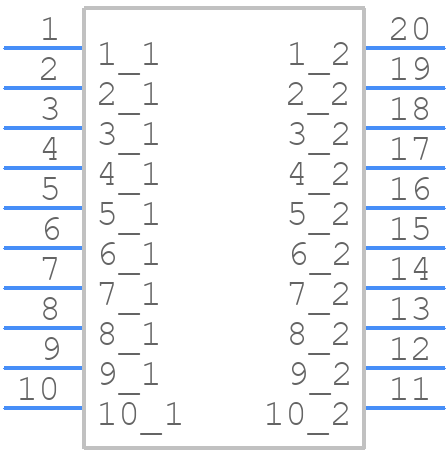

Use the download button to access the NDS-10-V schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NDS-1,
or try a keyword search, such as DIP Switches
