NDS08TV - Apem

Description: Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 25mA 24VDC , -40°C ~ 85°C

Download NDS08TV Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NDS08TV model

Email notifications will be applied after download.

Send part feedback

Symbol

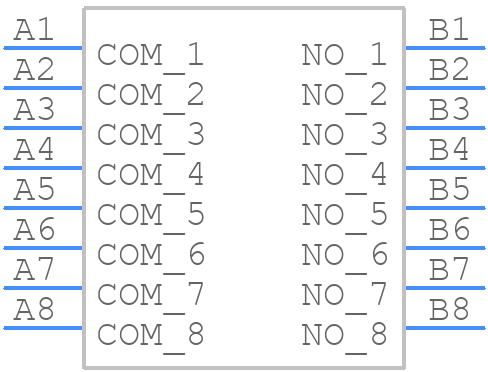

NDS08TV - Apem - PCB symbol

PCB Footprints

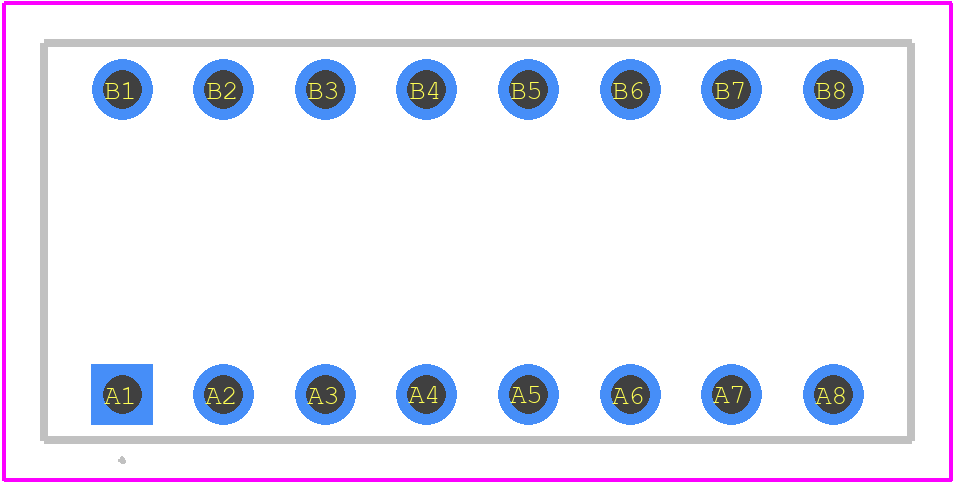

NDS08TV - Apem PCB footprint - Other - Other - 21.68mm x 9.90mm x 7.05mm

3D Models

NDS08TV - Apem - 3D model - Other - 21.68mm x 9.90mm x 7.05mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for NDS08TV
Part Number NDS08TV
Manufacturer Apem
Pin Count 16
Part Category Switch
Package Category Other
Footprint Name Other - 21.68mm x 9.90mm x 7.05mm
Released Date Sep 12, 2024
Last Modified Date Sep 12, 2024 7:57 AM UTC
Pinout / Pin List Click Here (Member Only)

NDS08TV Details

Manufacturer Part Number:
NDS08TV
Manufacturer:
APEM Inc

Trust Checks

Community Provided

System Verified

Community Approved

NDS08TV Overview

Use the download button to access the NDS08TV schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NDS08, or try a keyword search, such as DIP Switches
