NDTD0512C Frequently Asked Questions (FAQs)

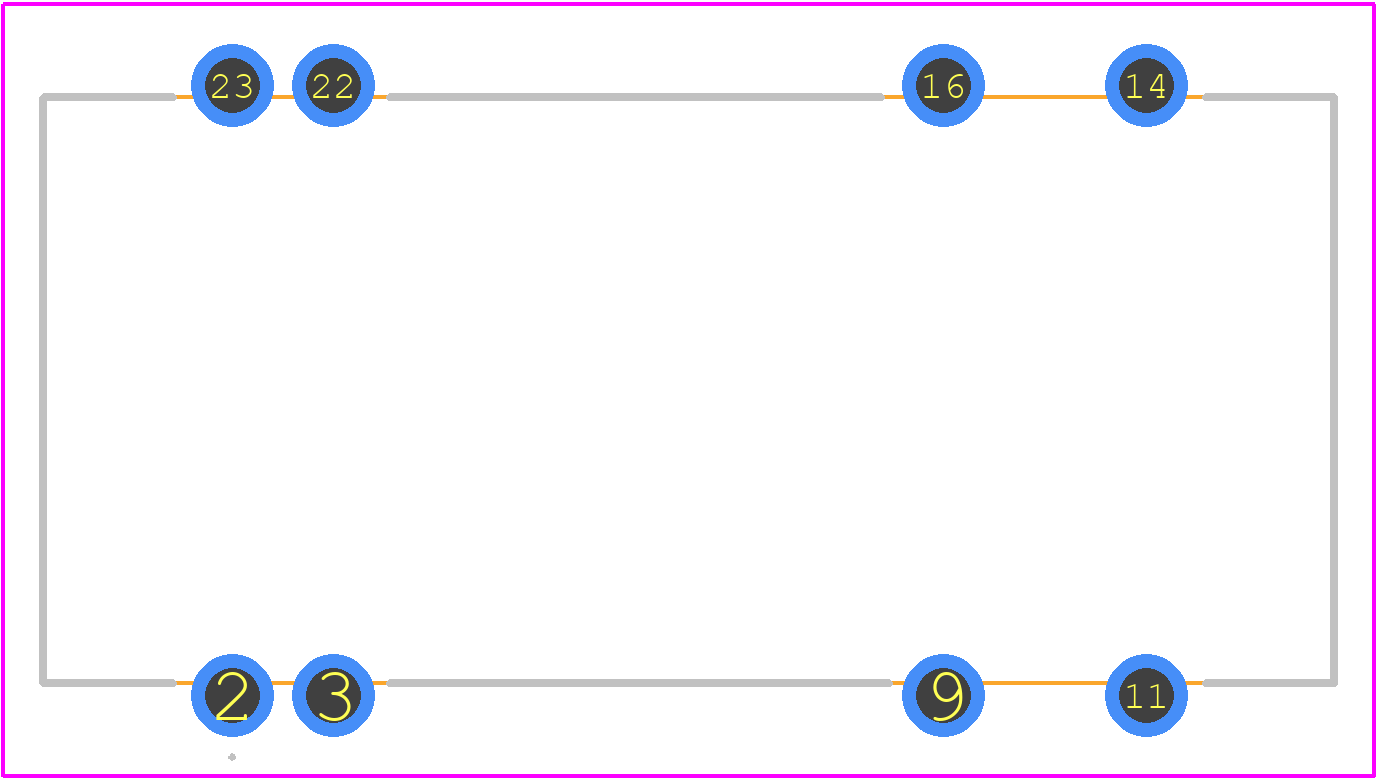

• What is the recommended PCB land pattern for the NTDTD0512C?
  Murata recommends a PCB land pattern with a minimum pad size of 1.2mm x 0.8mm and a solder mask clearance of 0.1mm. A detailed land pattern can be found in Murata's application note or by contacting their technical support.
• How do I ensure reliable soldering of the NTDTD0512C?
  To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 220°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven with a peak temperature of 240°C to 250°C.
• What is the maximum operating temperature range for the NTDTD0512C?
  The NTDTD0512C can operate safely within a temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade if operated outside the recommended temperature range of -20°C to 85°C.
• Can I use the NTDTD0512C in a high-vibration environment?
  Yes, the NTDTD0512C is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2000Hz. However, it's recommended to perform additional testing and validation to ensure the device meets the specific vibration requirements of your application.
• How do I handle the NTDTD0512C during storage and shipping?
  Store the NTDTD0512C in a dry, clean environment with a relative humidity of 60% or less. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures. During shipping, use anti-static packaging materials and follow ESD handling precautions to prevent damage.
