NDTS2405C - Murata Electronics

Description: Isolated DC/DC Converters 3W 24V-5V DIP24 DC/DC

Download NDTS2405C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

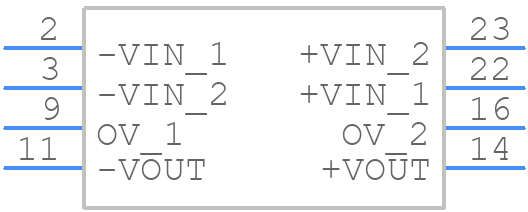

Symbol
NDTS2405C - Murata Electronics - PCB symbol
click to zoom

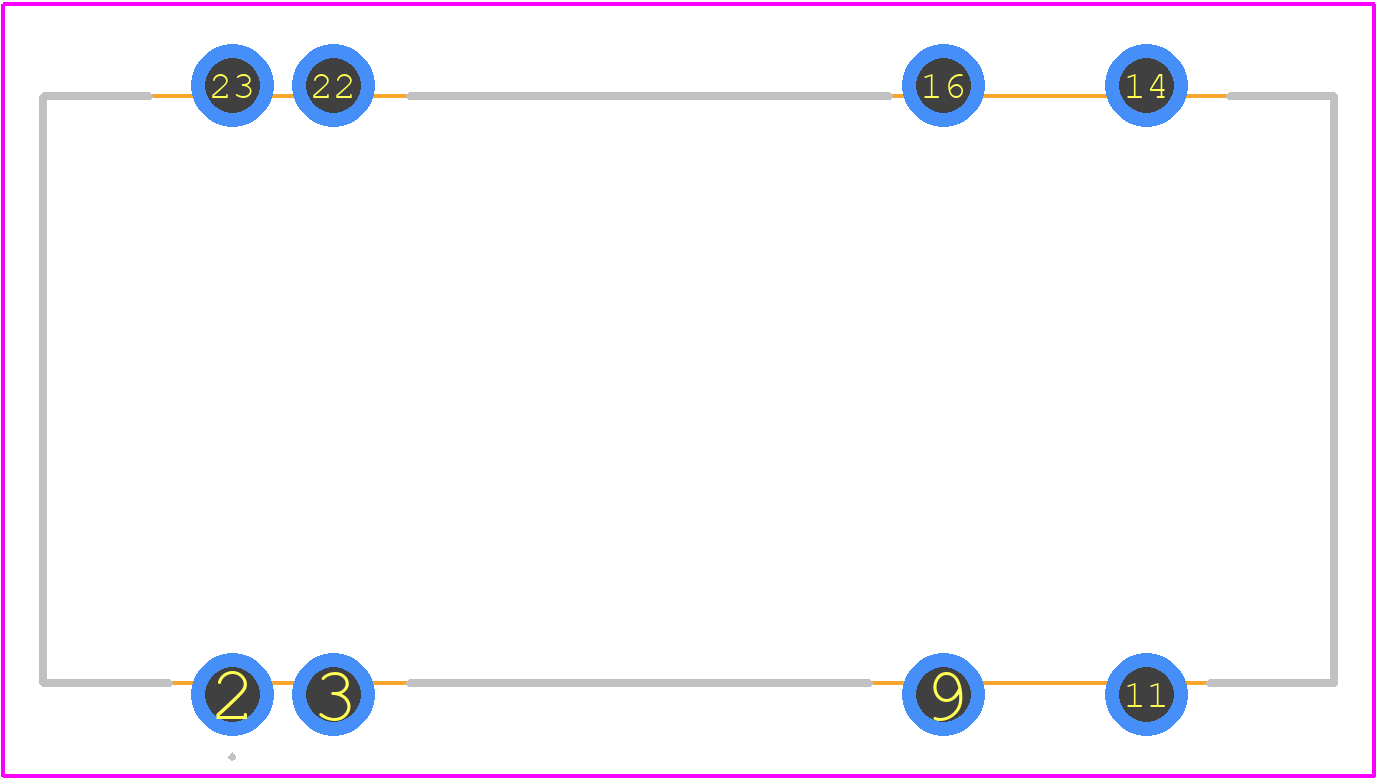

PCB Footprints
NDTS2405C - Murata Electronics PCB footprint - Other - Other - NDTS2405C-2
click to zoom
3D Models
NDTS2405C - Murata Electronics - 3D model - Other - NDTS2405C-2
click to zoom

NDTS2405C Details

  • Manufacturer Part Number:

    NDTS2405C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-T8

  • JESD-609 Code:

    e3

  • Load Regulation-Max:

    1.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

NDTS2405C Frequently Asked Questions (FAQs)

  • Murata recommends a PCB layout with a solid ground plane, minimal signal trace length, and a 10nF decoupling capacitor between VCC and GND pins to ensure optimal performance and reduce noise.
  • The NDTS2405C has a maximum operating temperature of 125°C. Ensure proper thermal design, including heat sinks or thermal vias, to maintain a safe operating temperature. Refer to Murata's thermal design guide for more information.
  • Murata recommends a reflow soldering process with a peak temperature of 260°C and a dwell time of 30 seconds. Avoid wave soldering and hand soldering to prevent damage to the component.
  • Start by verifying the power supply voltage, checking for proper PCB layout and soldering, and ensuring that the component is not damaged. Use oscilloscopes or logic analyzers to debug signal issues. Consult Murata's application notes and technical support for further assistance.
  • Yes, the NDTS2405C is a high-frequency component and requires proper EMI/EMC design considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Refer to Murata's EMI/EMC design guide for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NDTS2405C Overview

Use the download button to access the NDTS2405C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NDTS2, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
