NE12S0A0V10PNFA - Delta Electronics

Description: Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.1V 10A 3V - 13.8V Input

Download NE12S0A0V10PNFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

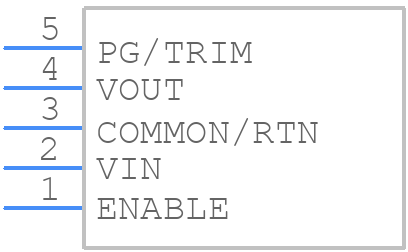

NE12S0A0V10PNFA - Delta Electronics - PCB symbol
click to zoom
PCB Footprints
NE12S0A0V10PNFA - Delta Electronics PCB footprint - Other - Other - NE12S0A0V10PNFA-1
click to zoom
3D Models
NE12S0A0V10PNFA - Delta Electronics - 3D model - Other - NE12S0A0V10PNFA-1
click to zoom

NE12S0A0V10PNFA Details

  • Manufacturer Part Number:

    NE12S0A0V10PNFA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT PACKAGE-5

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-30 Code:

    R-XSMA-T5

  • Number of Terminals:

    5

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED
