The recommended operating voltage range for the NE521DG is 4.5V to 16V, although it can operate up to 18V with reduced performance.
To ensure proper biasing, connect the output stage to a low-impedance load, and use a voltage divider to set the output voltage to half the supply voltage. Also, ensure the input stage is biased to the midpoint of the supply voltage.
The maximum power dissipation of the NE521DG is 1.4W, assuming a junction temperature of 150°C. However, this value can be derated based on the ambient temperature and package type.
While the NE521DG can be used as a voltage regulator, it's not recommended due to its limited current capability and lack of built-in voltage regulation features. Instead, consider using a dedicated voltage regulator IC.
To prevent overheating, ensure good heat sinking, use a thermally conductive package, and avoid operating the device at maximum power dissipation for extended periods. Also, consider using thermal monitoring and shutdown circuits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NE521DG Overview

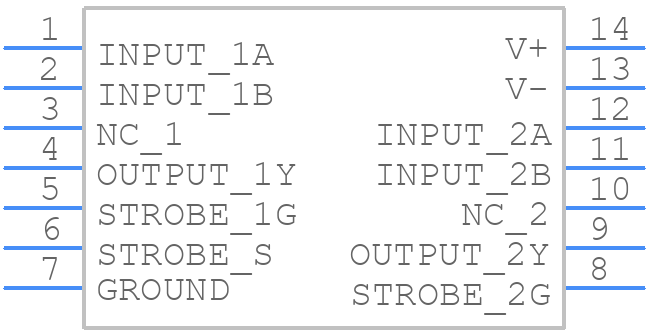

Use the download button to access the NE521DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE521,
or try a keyword search, such as Comparators
