NE5532AD8R2G - onsemi

Description: Small-Signal Bandwidth: 10 MHz; Output Drive Capability: 600 Ω, 10 VRMS; Input Noise Voltage: 5.0 nV/(Hz)^0.5 (Typical); DC Voltage Gain: 50000; AC Voltage Gain: 2200 at 10 kHz; Power Bandwidth: 140 kHz; Slew Rate: 9.0 V/µs; Large Supply Voltage Range: ±3.0 to ±20 V; Compensated for Unity Gain

Download NE5532AD8R2G Model

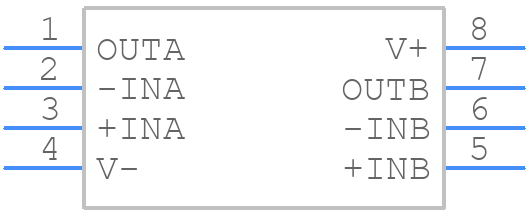

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NE5532AD8R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07
click to zoom
3D Models
NE5532AD8R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07
click to zoom

NE5532AD8R2G Details

  • Manufacturer Part Number:

    NE5532AD8R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1 µA

  • Bias Current-Max (IIB) @25C:

    0.8 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    9 V/us

  • Supply Current-Max:

    16 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

NE5532AD8R2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the NE5532AD8R2G is 670mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
  • To ensure stability, it's recommended to use a compensation capacitor between pins 1 and 8, and to minimize parasitic capacitance and inductance in the circuit layout.
  • The recommended operating voltage range for the NE5532AD8R2G is ±2V to ±18V, although the device can operate with a single supply voltage from 4V to 36V.
  • To reduce noise and oscillations, use a low-pass filter at the input, minimize the input impedance, and use a decoupling capacitor between the power supply pins.
  • Yes, the NE5532AD8R2G is suitable for audio applications due to its high slew rate, low distortion, and low noise characteristics, making it suitable for audio amplifiers, filters, and other audio circuits.
