NE5532D8R2G - onsemi

Description: Small-Signal Bandwidth: 10 MHz; Output Drive Capability: 600 Ω, 10 VRMS; Input Noise Voltage: 5.0 nV/(Hz)^0.5 (Typical); DC Voltage Gain: 50000; AC Voltage Gain: 2200 at 10 kHz; Power Bandwidth: 140 kHz; Slew Rate: 9.0 V/µs; Large Supply Voltage Range: ±3.0 to ±20 V; Compensated for Unity Gain

Download NE5532D8R2G Model

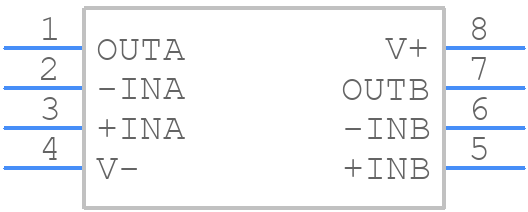

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NE5532D8R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07
click to zoom
3D Models
NE5532D8R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07
click to zoom

NE5532D8R2G Details

  • Manufacturer Part Number:

    NE5532D8R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1 µA

  • Bias Current-Max (IIB) @25C:

    0.8 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    9 V/us

  • Supply Current-Max:

    16 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

NE5532D8R2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the NE5532D8R2G is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
  • To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-100pF) between the output and the inverting input to prevent oscillations. Additionally, ensure that the layout is well-designed to minimize parasitic capacitance and inductance.
  • The recommended operating voltage range for the NE5532D8R2G is ±2V to ±18V, with a maximum differential input voltage of ±30V. Operating outside of this range may affect the op-amp's performance and reliability.
  • To prevent electrostatic discharge (ESD) damage, handle the NE5532D8R2G by the body, avoid touching the pins, and use an anti-static wrist strap or mat. Also, ensure that the PCB design includes ESD protection components, such as TVS diodes or resistors, to protect the op-amp from voltage surges.
  • The typical slew rate of the NE5532D8R2G is 9V/μs, which is sufficient for most audio and general-purpose applications. However, if you need a higher slew rate, consider using a different op-amp or adding an external compensation capacitor.
