- Part Number NE555N
- Manufacturer HGSEMI
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - DIP8
- Released Date Jan 10, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NE555N Details
-
Manufacturer Part Number:
NE555N
-
Manufacturer:
HuaGuan Semiconductor
Trust Checks
Expert Contribution
System Verified
Community Approved
NE555N Overview

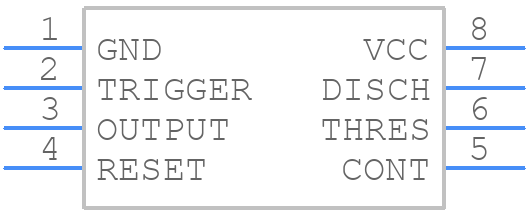

Use the download button to access the NE555N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE555,
or try a keyword search, such as Analog Waveform Generation Functions
