NE555N - STMicroelectronics

Description: 555 IC timer,NE555N 0.5MHz DIL8 General-purpose single bipolar timers

Download NE555N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NE555N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

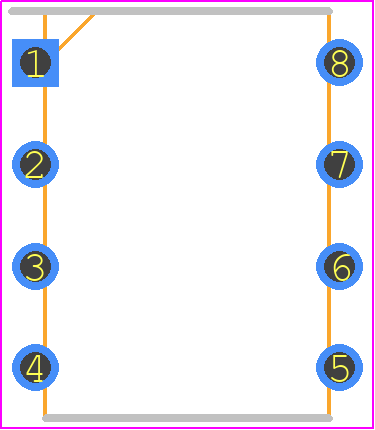

NE555N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NE555N-DIP8
click to zoom
3D Models
NE555N - STMicroelectronics - 3D model - Dual-In-Line Packages - NE555N-DIP8
click to zoom

NE555N Details

  • Manufacturer Part Number:

    NE555N

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 15V NOMINAL SUPPLY

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Frequency-Max:

    0.5 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

NE555N Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the NE555N is typically around 500 kHz, but it can vary depending on the specific application and component values.
  • To ensure stable operation in astable mode, make sure to use a decoupling capacitor (e.g., 10nF) between VCC and GND, and use a pull-up resistor (e.g., 1kΩ) on the trigger input (pin 2) to prevent false triggering.
  • The minimum supply voltage for the NE555N is 4.5V, and the maximum supply voltage is 16V. Operating the IC outside of this range may affect its performance and reliability.
  • No, the NE555N is not designed to be used as a voltage regulator. It's a timer IC, and its output is a digital signal, not a regulated voltage. Use a dedicated voltage regulator IC for voltage regulation applications.
  • Use the following formulas to calculate the timing components: T = 0.69 * (R1 + R2) * C1 for the period, and f = 1 / (0.69 * (R1 + R2) * C1) for the frequency. Adjust the values of R1, R2, and C1 to achieve the desired frequency or period.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

NE555N Overview

Use the download button to access the NE555N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE555, or try a keyword search, such as Analog Waveform Generation Functions
