NE555S-13 - Diodes Incorporated

Description: Precision Timers SOIC8 DiodesZetex NE555S-13, Precision Timer, 4.5V to 16V, 8-Pin SOIC

Download NE555S-13 Model

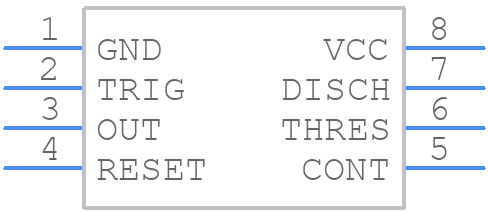

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NE555S-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - NE555S-13
click to zoom
3D Models
NE555S-13 - Diodes Incorporated  - 3D model - Small Outline Packages - NE555S-13
click to zoom

NE555S-13 Details

  • Manufacturer Part Number:

    NE555S-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NE555S-13 Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the NE555S-13 is approximately 2.5 MHz, although this can vary depending on the specific application and component values.
  • To ensure stable operation in astable mode, it's essential to use a decoupling capacitor (typically 10-100 nF) between VCC and GND, and to choose component values that ensure the timing resistors (R1 and R2) are not too small or too large.
  • The minimum supply voltage for the NE555S-13 is 4.5V, and the maximum supply voltage is 16V. Operating the device outside of this range may affect its performance and reliability.
  • While the NE555S-13 can be used as a simple voltage regulator, it's not recommended as it's not designed for this purpose. The device is primarily intended for timing and oscillation applications.
  • To reduce power consumption, consider using a lower supply voltage, reducing the clock frequency, or using a low-power version of the NE555S-13. Additionally, using a CMOS version of the device (e.g., LMC555) can also help reduce power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NE555S-13 Overview

Use the download button to access the NE555S-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE555, or try a keyword search, such as Analog Waveform Generation Functions
