NE8FAH-C5 - Neutrik

Description: NEUTRIK - NE8FAH-C5 - CONNECTOR, RJ45, JACK, 8P8C, CAT5E

Download NE8FAH-C5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NE8FAH-C5 - Neutrik - PCB symbol
click to zoom
PCB Footprints

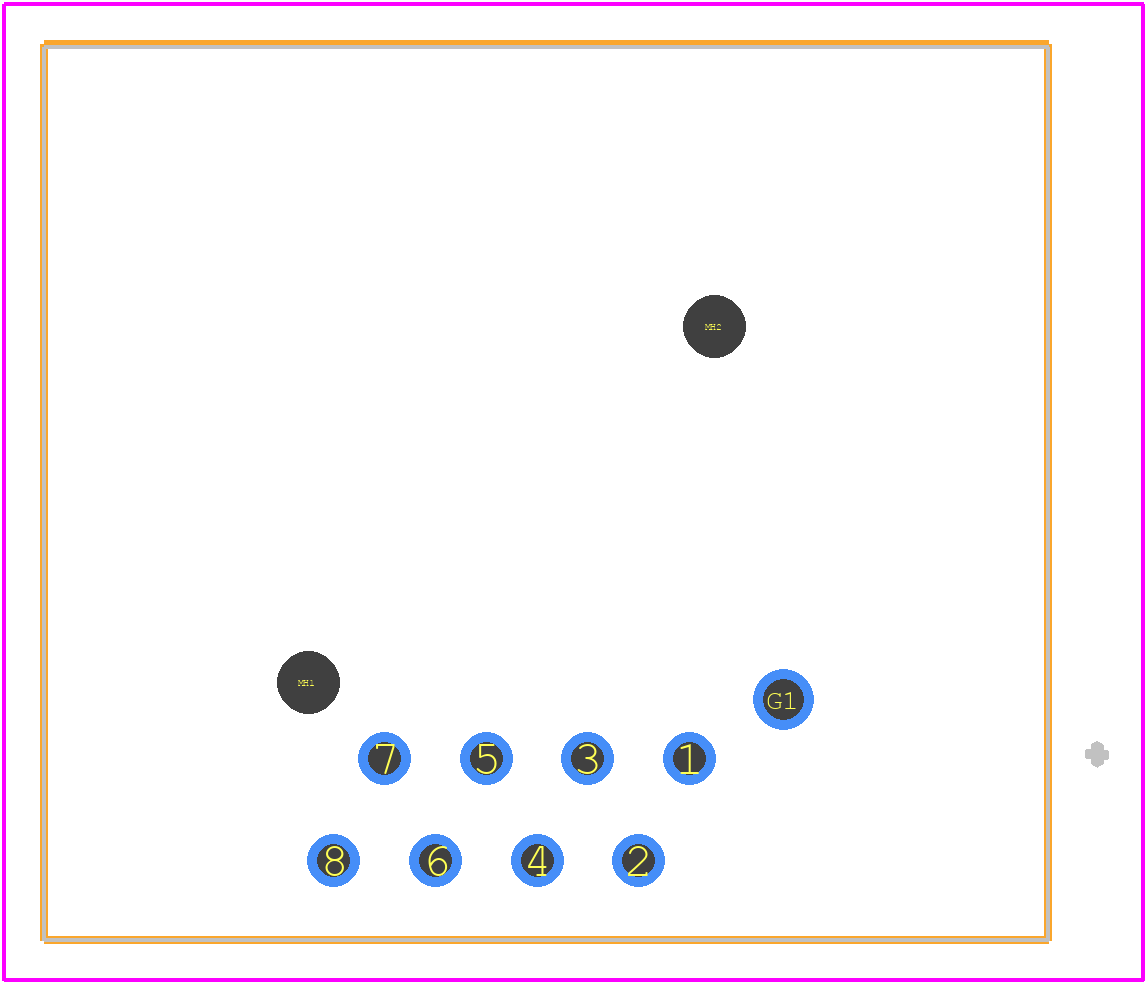

NE8FAH-C5 - Neutrik PCB footprint - Other - Other - NE8FAH-C5-1
click to zoom
3D Models
NE8FAH-C5 - Neutrik - 3D model - Other - NE8FAH-C5-1
click to zoom

NE8FAH-C5 Details

  • Manufacturer Part Number:

    NE8FAH-C5

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    RJ CONNECTOR

NE8FAH-C5 Frequently Asked Questions (FAQs)

  • The recommended torque for the NE8FAH-C5 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs).
  • Yes, the NE8FAH-C5 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • No, the NE8FAH-C5 connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and data transmission.
  • Yes, the NE8FAH-C5 connector is compatible with other Neutrik connectors, including the NE8MX-HC and NE8MX-BHC.
  • The operating temperature range of the NE8FAH-C5 connector is -20°C to 75°C (-4°F to 167°F).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NE8FAH-C5 Overview

Use the download button to access the NE8FAH-C5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE8FA, or try a keyword search, such as Telecom and Datacom Connectors
