NE8FAH-LR-DAE - Neutrik

Description: Modular Connectors / Ethernet Connectors Receptacle etherCON CAT5 A series PCBH halo light ring disassembled compound push

Download NE8FAH-LR-DAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NE8FAH-LR-DAE - Neutrik - PCB symbol
click to zoom
PCB Footprints

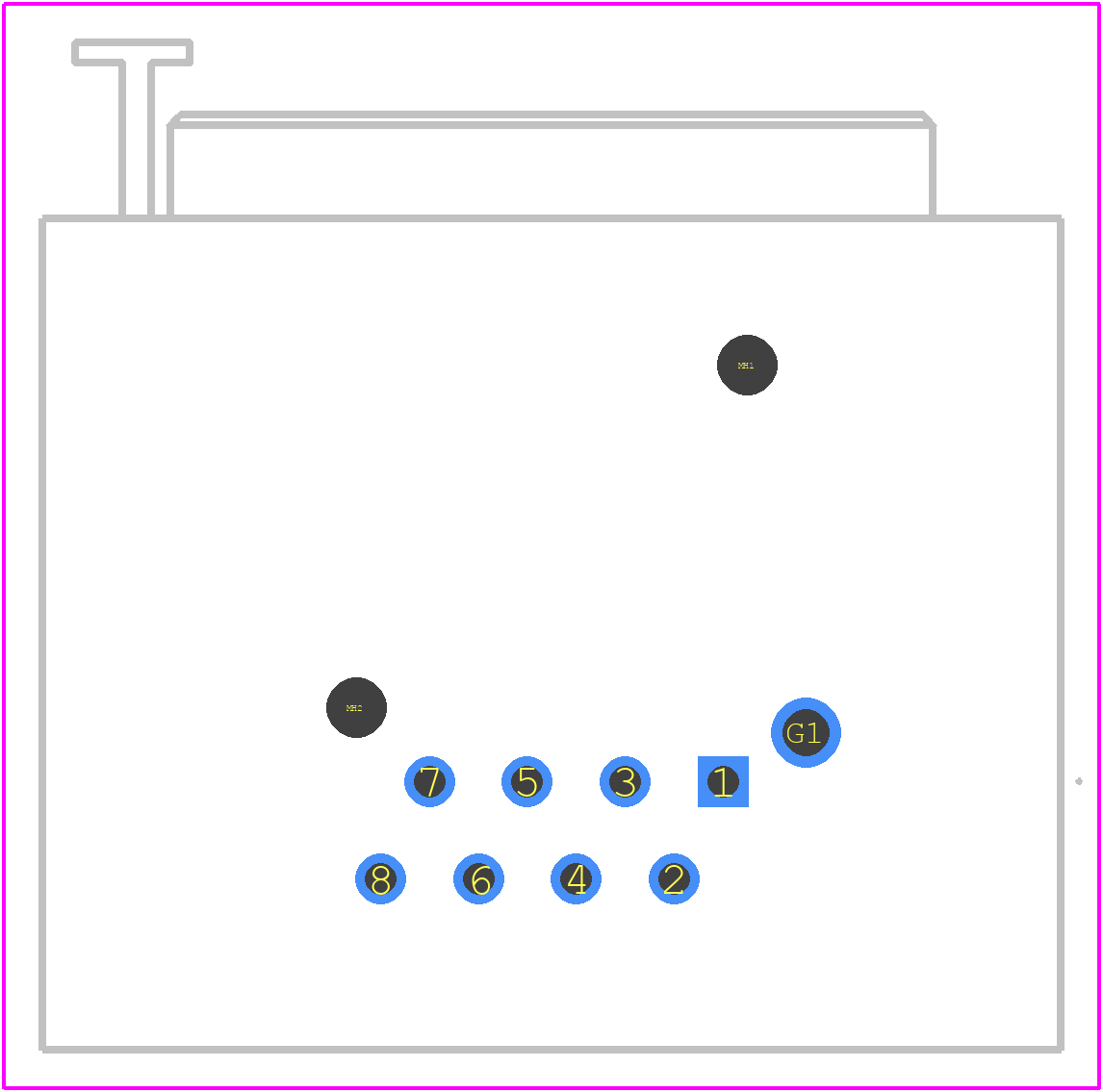

NE8FAH-LR-DAE - Neutrik PCB footprint - Other - Other - NE8FAH-LR-DAE-2
click to zoom
3D Models
NE8FAH-LR-DAE - Neutrik - 3D model - Other - NE8FAH-LR-DAE-2
click to zoom

NE8FAH-LR-DAE Details

  • Manufacturer Part Number:

    NE8FAH-LR-DAE

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    RJ CONNECTOR

NE8FAH-LR-DAE Frequently Asked Questions (FAQs)

  • The recommended torque for the NE8FAH-LR-DAE connector is 0.6 Nm (5.3 in-lbs) to ensure proper connection and prevent damage.
  • Yes, the NE8FAH-LR-DAE is designed to be compatible with other Neutrik products, including their range of XLR connectors and adapters.
  • The operating temperature range of the NE8FAH-LR-DAE is -20°C to +70°C (-4°F to +158°F), making it suitable for use in a wide range of applications.
  • Yes, the NE8FAH-LR-DAE is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for use in the European Union.
  • The NE8FAH-LR-DAE can accommodate cables with a diameter range of 4.5 mm to 7.5 mm (0.18 in to 0.30 in).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NE8FAH-LR-DAE Overview

Use the download button to access the NE8FAH-LR-DAE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE8FA, or try a keyword search, such as Telecom and Datacom Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
