NE8FBH-S footprint, schematic symbol and 3D model by Neutrik

Symbol

click to zoom

PCB Footprints

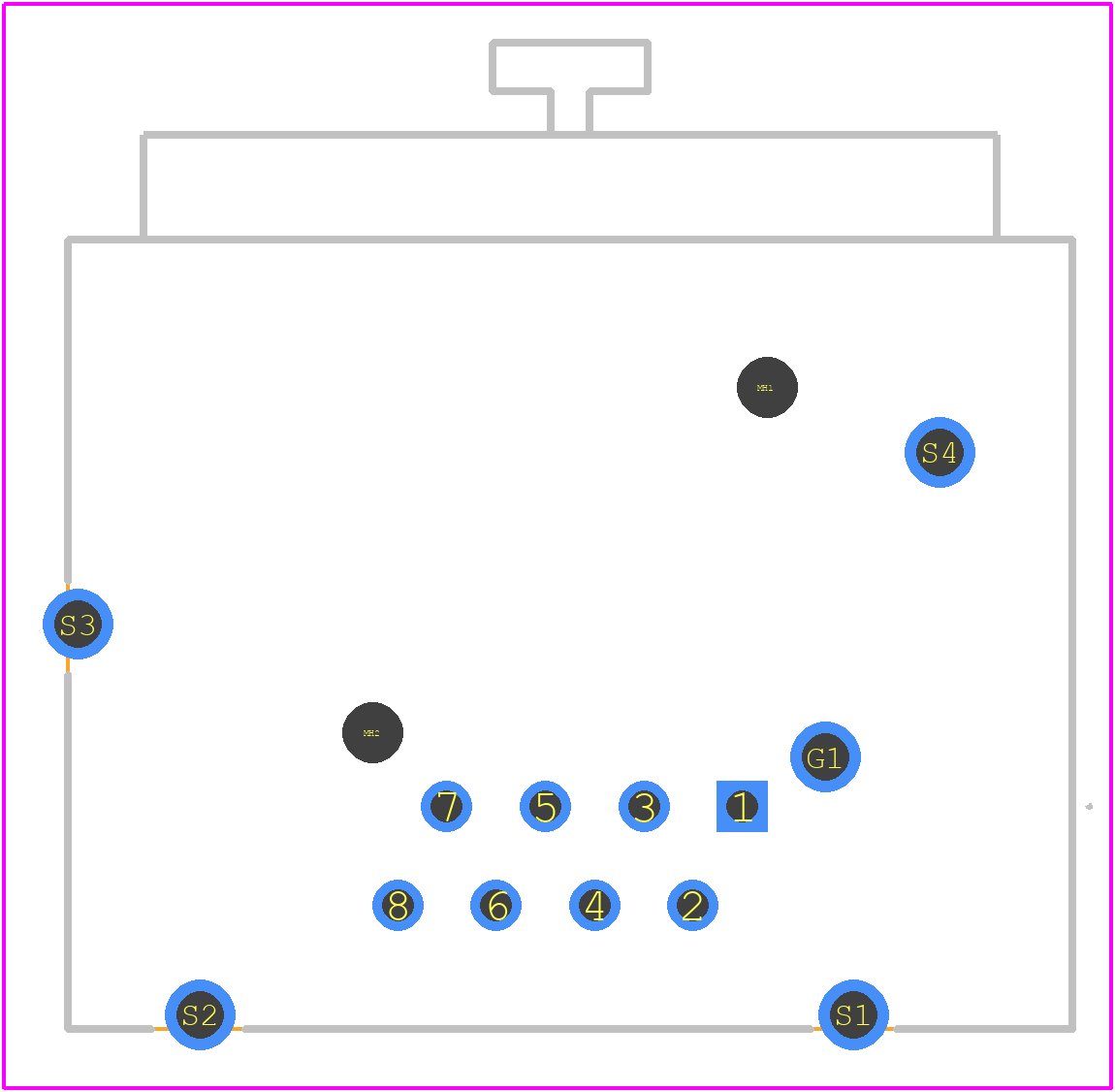

NE8FBH-S - Neutrik PCB footprint - Other - Other - NE8FBH-S-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NE8FBH-S
Part Number NE8FBH-S
Manufacturer Neutrik
Pin Count 13
Part Category Connector
Package Category Other
Footprint Name Other - NE8FBH-S-3
Released Date Nov 1, 2023
Last Modified Date Nov 2, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

NE8FBH-S Details

Manufacturer Part Number:
NE8FBH-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Neutrik USA Inc
YTEOL:
7.57
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8

NE8FBH-S Frequently Asked Questions (FAQs)

The recommended torque for the NE8FBH-S connector is 0.5 Nm to 1.5 Nm (5-13 in-lbs).
Yes, the NE8FBH-S connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
Yes, the NE8FBH-S connector is designed to be compatible with other Neutrik products, such as their XLR connectors and adapters.
The maximum cable diameter that can be used with the NE8FBH-S connector is 6.5 mm (0.256 in).
Yes, the NE8FBH-S connector is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

Community Provided

System Verified

Community Approved

NE8FBH-S Overview

Use the download button to access the NE8FBH-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NE8FB, or try a keyword search, such as Telecom and Datacom Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
