Part Image

NE8FBV-C5-LED1 - Neutrik

Description: NEUTRIK - NE8FBV-C5-LED1 - CONNECTOR, RJ45, JACK, 8P8C, CAT5E

Download NE8FBV-C5-LED1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NE8FBV-C5-LED1 - Neutrik - PCB symbol
click to zoom
PCB Footprints

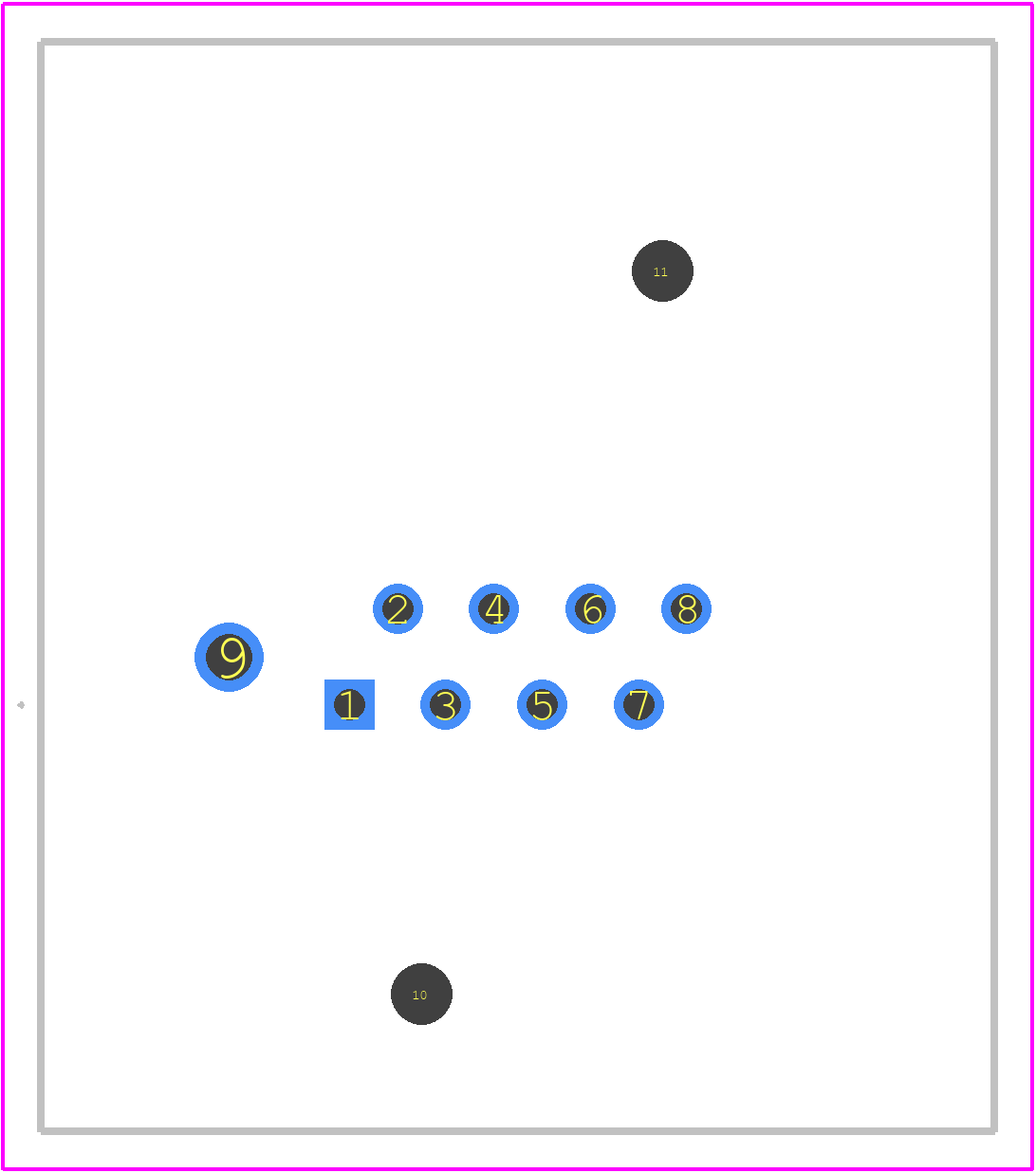

NE8FBV-C5-LED1 - Neutrik PCB footprint - Other - Other - NE8FBV-C5-LED1-6
click to zoom
3D Models
NE8FBV-C5-LED1 - Neutrik - 3D model - Other - NE8FBV-C5-LED1-6
click to zoom

NE8FBV-C5-LED1 Details

  • Manufacturer Part Number:

    NE8FBV-C5-LED1

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    RJ CONNECTOR

NE8FBV-C5-LED1 Frequently Asked Questions (FAQs)

  • The operating temperature range of the NE8FBV-C5-LED1 is -20°C to +70°C.
  • Yes, the NE8FBV-C5-LED1 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.
  • The typical LED indicator color of the NE8FBV-C5-LED1 is green, and the intensity is around 10-20 mcd (millicandelas).
  • While the NE8FBV-C5-LED1 is designed for general-purpose use, it is not specifically rated for outdoor or harsh environments. For such applications, consider using a more ruggedized or environmentally sealed connector.
  • The recommended mating cycle for the NE8FBV-C5-LED1 is 500-1000 cycles, depending on the application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NE8FBV-C5-LED1 Overview

Use the download button to access the NE8FBV-C5-LED1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE8FB, or try a keyword search, such as Telecom and Datacom Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
