NE8FDV-B-TOP - Neutrik

Description: Modular Connectors / Ethernet Connectors CAT5 D series - PCBV - black - TOP - IP 65 and UV rated

Download NE8FDV-B-TOP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NE8FDV-B-TOP - Neutrik - PCB symbol
click to zoom

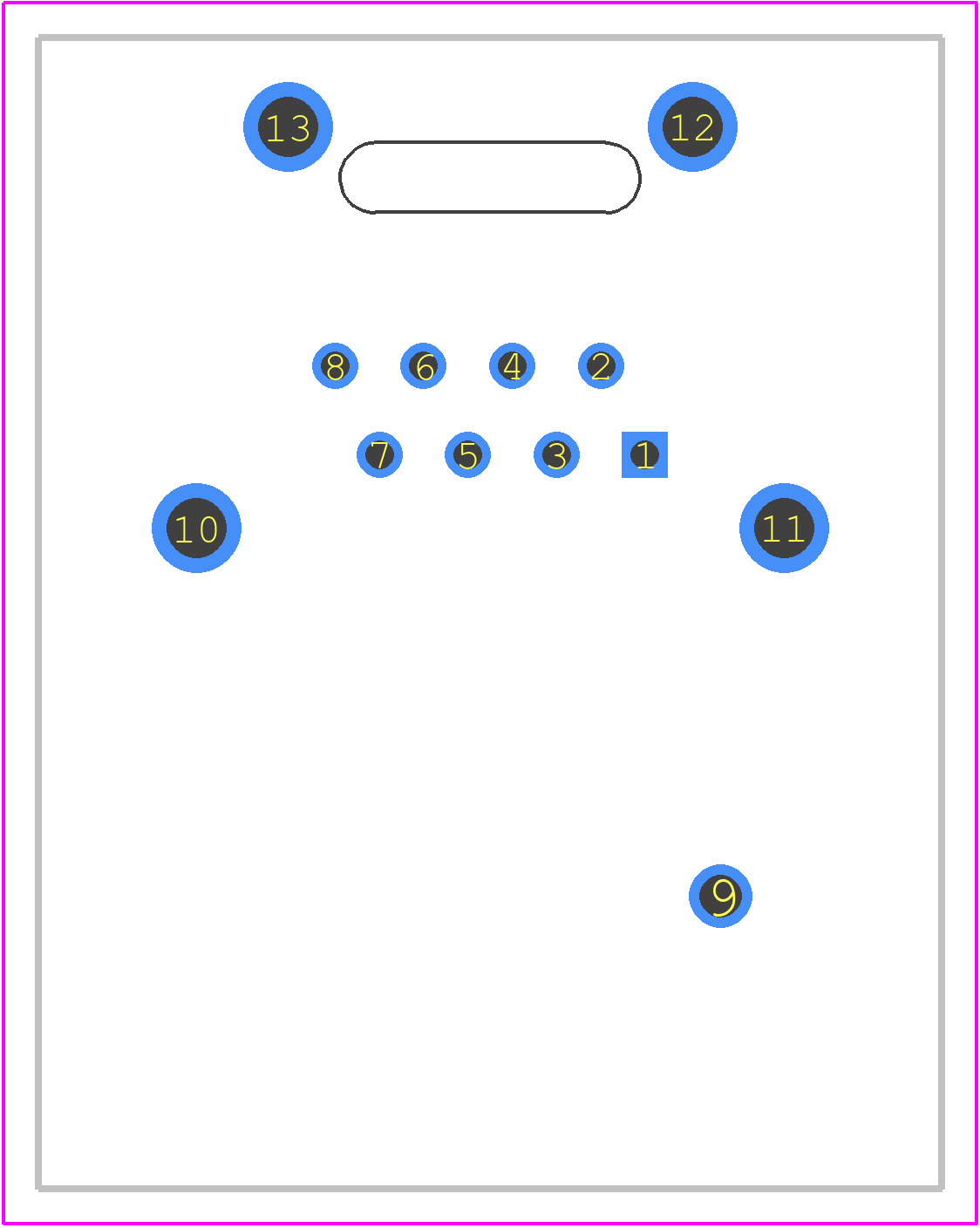

PCB Footprints
NE8FDV-B-TOP - Neutrik PCB footprint - Other - Other - NE8FDV-B-TOP
click to zoom
3D Models
NE8FDV-B-TOP - Neutrik - 3D model - Other - NE8FDV-B-TOP
click to zoom

NE8FDV-B-TOP Details

  • Manufacturer Part Number:

    NE8FDV-B-TOP

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    RJ CONNECTOR

NE8FDV-B-TOP Frequently Asked Questions (FAQs)

  • The recommended torque for securing the NE8FDV-B-TOP connector is 0.6 Nm (5.3 in-lbs) to 1.2 Nm (10.6 in-lbs) according to Neutrik's application notes.
  • Yes, the NE8FDV-B-TOP connector is suitable for outdoor use due to its IP65 rating, which provides protection against dust and water jets.
  • Yes, the NE8FDV-B-TOP connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • Yes, the NE8FDV-B-TOP connector is part of Neutrik's XLR series and is compatible with other Neutrik XLR connectors, including the NE8MX-B and NE8FX-B series.
  • The operating temperature range of the NE8FDV-B-TOP connector is -20°C to +70°C (-4°F to +158°F) according to Neutrik's specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NE8FDV-B-TOP Overview

Use the download button to access the NE8FDV-B-TOP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE8FD, or try a keyword search, such as Telecom and Datacom Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
