NE8FDV-B - Neutrik

Description: Connector RJ45 RJ45 female etherCON PIN: 8 straight Cat 5e

Download NE8FDV-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NE8FDV-B - Neutrik - PCB symbol
click to zoom
PCB Footprints

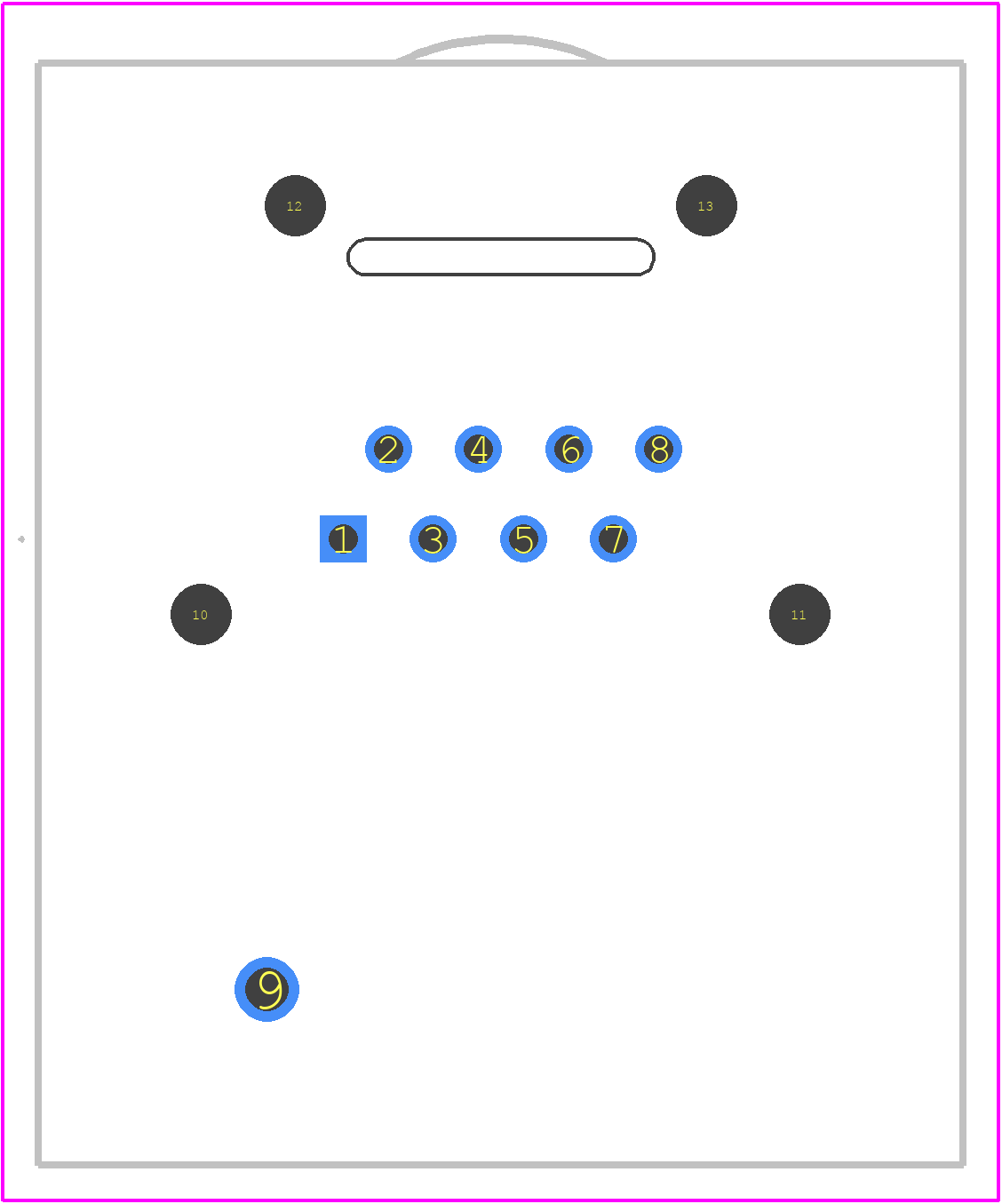

NE8FDV-B - Neutrik PCB footprint - Other - Other - NE8FDV-B-2
click to zoom
3D Models
NE8FDV-B - Neutrik - 3D model - Other - NE8FDV-B-2
click to zoom

NE8FDV-B Details

  • Manufacturer Part Number:

    NE8FDV-B

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    RJ CONNECTOR

NE8FDV-B Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the NE8FDV-B connector is 0.5 Nm to 1.5 Nm (0.37 in-lbs to 1.06 in-lbs).
  • Yes, the NE8FDV-B connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • No, the NE8FDV-B connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and video transmission.
  • Yes, the NE8FDV-B connector is compatible with other Neutrik connectors, including the NE8MX-B and NE8MX-HD.
  • The operating temperature range of the NE8FDV-B connector is -20°C to 75°C (-4°F to 167°F).
