The recommended torque is 0.5 Nm to 1.5 Nm (5-13 in-lbs) to ensure a secure connection.
Yes, the NE8FDV-SE is compatible with other Neutrik XLR connectors, including the XX series, and can be used as a replacement or in new designs.
The operating temperature range for the NE8FDV-SE is -20°C to +70°C (-4°F to +158°F), making it suitable for a wide range of applications.
Yes, the NE8FDV-SE is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting EU regulations for environmental safety.
Yes, the NE8FDV-SE is designed to withstand harsh environments and can be used outdoors, thanks to its rugged construction and IP65 rating for dust and water resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NE8FDV-SE Overview

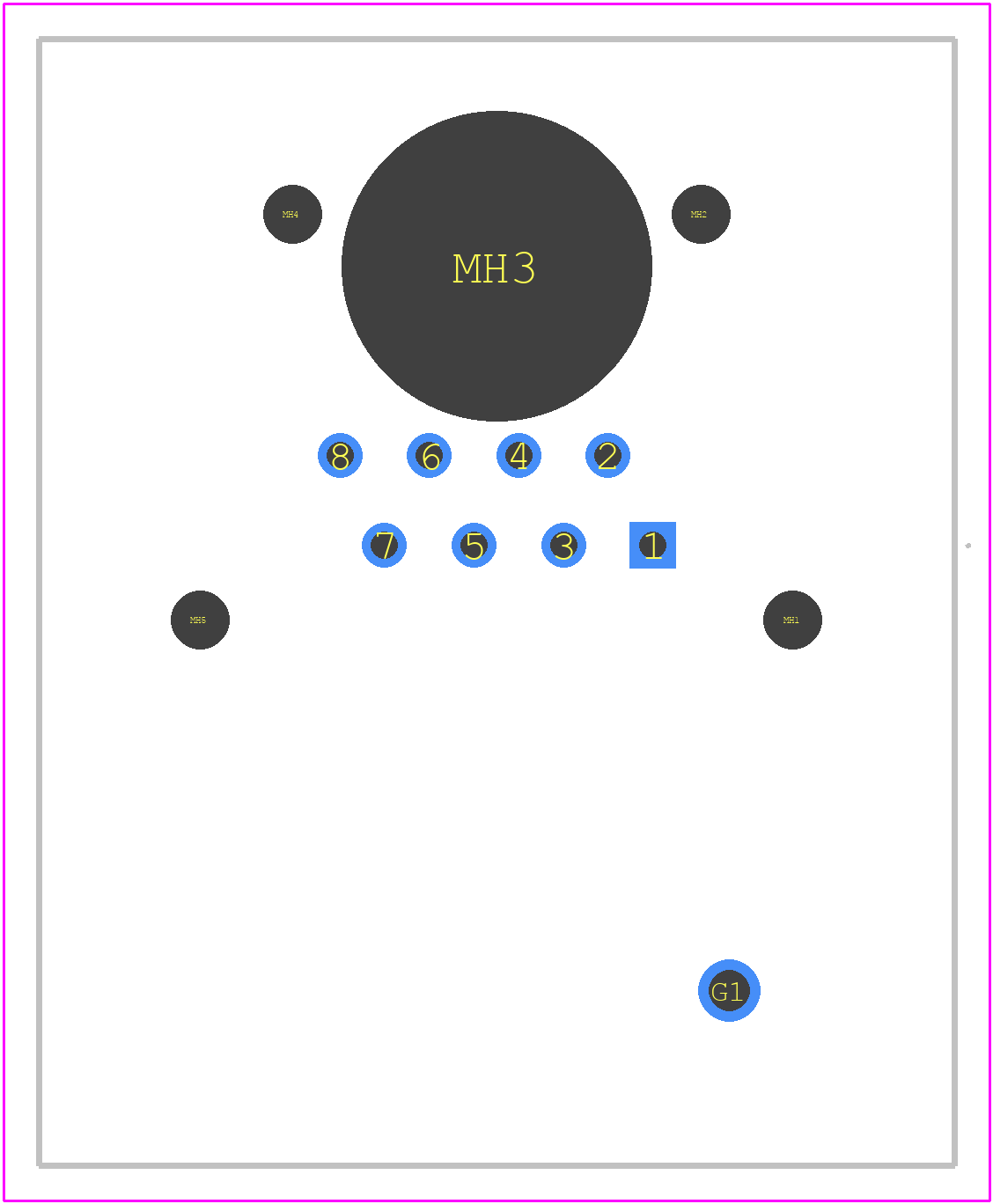

Use the download button to access the NE8FDV-SE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE8FD,
or try a keyword search, such as Telecom and Datacom Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
