NEX90240BPA-Q100F - Nexperia

Description: Automotive product qualification in accordance with AEC-Q100 (Grade 1) Temperature grade 1 (Tamb): -40 °C to 125 °C Junction temperature (Tj ): -40 °C to 150 °C Input voltage range: 3 V to 40 V (45 V transient) Output voltage: 5.2 V (fixed) Maximum output current: 400 mA Low dropout voltage: 630 mV typical at 400 mA Low quiescent current (Iq): 5.3 µA typical at light loads 300 nA typical shutdown current Stable with a wide range of ceramic output-stability cap: ESR from 0.001 Ω to

Download NEX90240BPA-Q100F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

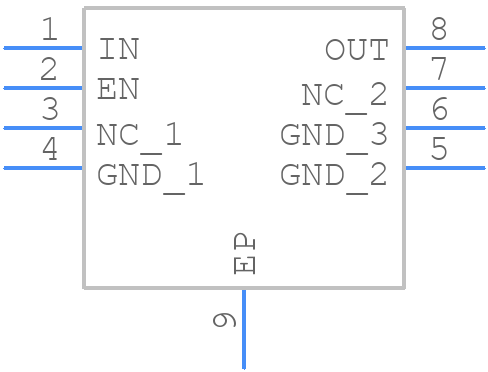

NEX90240BPA-Q100F - Nexperia - PCB symbol
