NEXC474Z5.5V16X9.5TRF - NIC Components

Description: Double layer SMT Capacitor 5.5V 0.47F NIC Components 0.47F 13Ω 5.5 V dc SMD Electric Double Layer Capacitor NEXC

Download NEXC474Z5.5V16X9.5TRF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NEXC474Z5.5V16X9.5TRF - NIC Components - PCB symbol
click to zoom
PCB Footprints

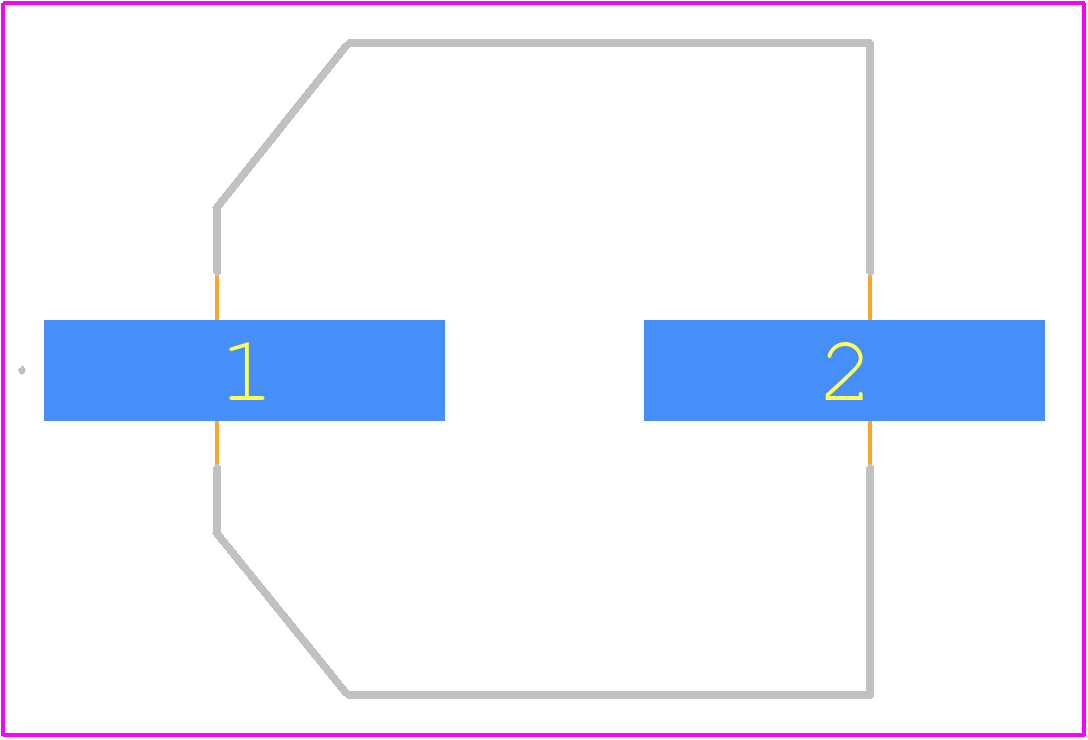

NEXC474Z5.5V16X9.5TRF - NIC Components PCB footprint - Other - Other - NEXC474Z5.5V16X9.5TRF-2
click to zoom
3D Models
NEXC474Z5.5V16X9.5TRF - NIC Components - 3D model - Other - NEXC474Z5.5V16X9.5TRF-2
click to zoom

NEXC474Z5.5V16X9.5TRF Details

  • Manufacturer Part Number:

    NEXC474Z5.5V16X9.5TRF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    NIC Components Corp

  • YTEOL:

    7

  • Capacitance:

    470000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Dielectric Material:

    ACTIVATED CARBON

  • Height:

    8.5 mm

  • JESD-609 Code:

    e3

  • Length:

    16.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 INCH

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Size Code:

    6464

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    16.3 mm

NEXC474Z5.5V16X9.5TRF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NEXC474Z5.5V16X9.5TRF can be found in the NIC Components Corp's application note or by contacting their technical support team.
  • The NEXC474Z5.5V16X9.5TRF has a thermal resistance of 9.5°C/W. To handle thermal management, ensure good airflow, use a heat sink if necessary, and follow proper PCB design guidelines for thermal dissipation.
  • The maximum operating temperature range for the NEXC474Z5.5V16X9.5TRF is -40°C to 125°C, as specified in the datasheet.
  • The NEXC474Z5.5V16X9.5TRF is a surface-mount device and can be used in high-vibration environments, but ensure proper PCB design and mounting to prevent mechanical stress and damage.
  • Store the NEXC474Z5.5V16X9.5TRF in a dry, cool place, away from direct sunlight and moisture, and follow the recommended storage conditions specified in the datasheet.
