NF4EB-12V - Panasonic

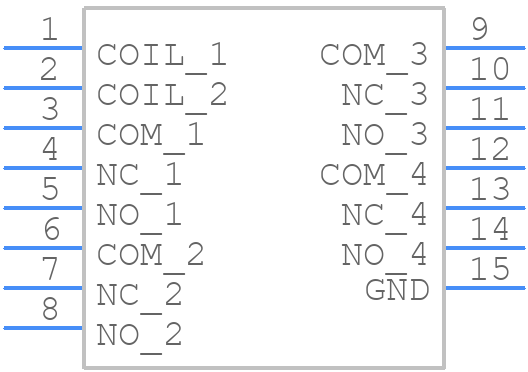

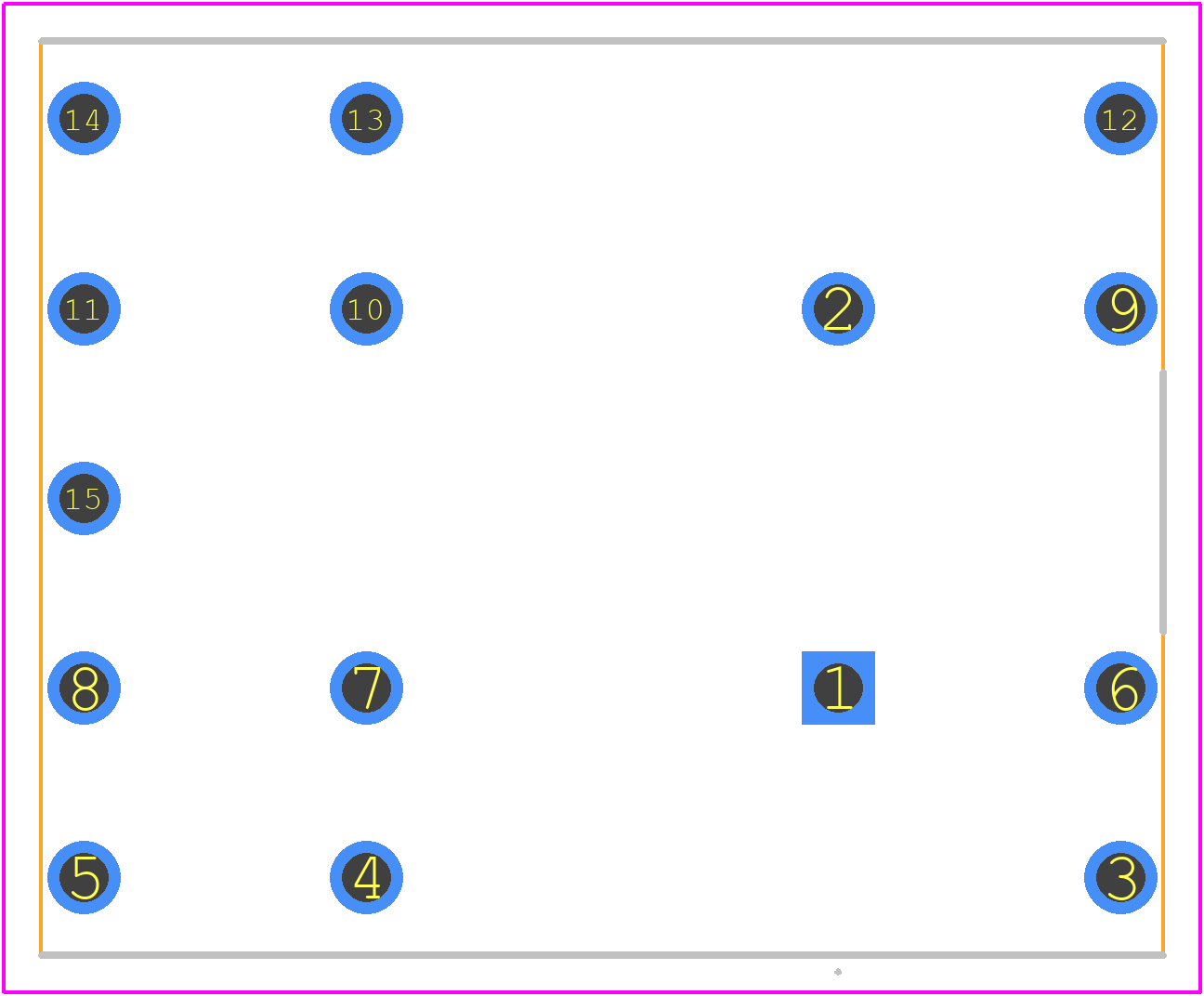

NF4EB-12V Details

• Manufacturer Part Number:

  NF4EB-12V

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Body Breadth:

  20 mm

• Body Height:

  11.1 mm

• Body Length or Diameter:

  30.2 mm

• Coil Current(DC)-Max:

  0.037 A

• Coil Operate Voltage(DC):

  9.6 V

• Coil Power:

  440 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  330 Ω

• Coil Voltage(DC)-Max:

  17 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  100VA@220VAC

• Contact (AC) Max Rating R Load:

  2A@220VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Power Rating R Load:

  60W@220VDC

• Contact (DC) Max Rating R Load:

  2A@220VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  220 V

• Contact Voltage(DC)-Max:

  220 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  200000 Cycle(s)

• End Contact Material:

  Silver

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  15

• Operate Time:

  16.5 ms

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  30.2mm x 20mm x 11.1mm

• Relay Action:

  MBB

• Relay Form:

  4 FORM C

• Relay Function:

  4PDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  11.5 ms

• Surface Mount:

  NO

• Terminal Length:

  0.0033020066040132085 inch

• Termination Type:

  SOLDER
