NFA18SL207V1A45L - Murata Electronics

Description: NFA18SL Series EMI Suppression Filter Cutoff 200MHz 50mA 10V

Download NFA18SL207V1A45L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

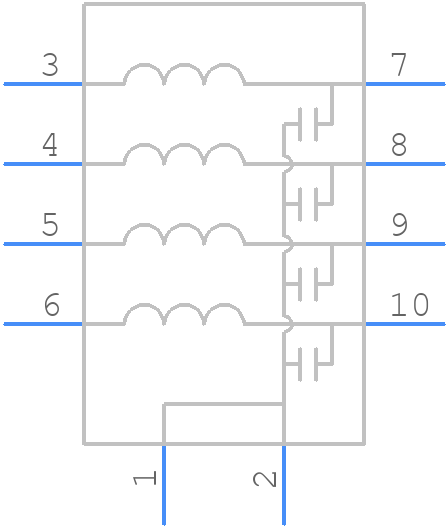

Symbol
NFA18SL207V1A45L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFA18SL207V1A45L - Murata Electronics PCB footprint - Other - Other - NFA18 T=0.65
click to zoom
3D Models
NFA18SL207V1A45L - Murata Electronics - 3D model - Other - NFA18 T=0.65
click to zoom

NFA18SL207V1A45L Details

  • Manufacturer Part Number:

    NFA18SL207V1A45L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    EIA STD PACKAGE SIZE 0603, 10 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    2

  • Filter Type:

    FERRITE CHIP

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    6 dB

  • Insulation Resistance-Min:

    1000 MΩ

  • JESD-609 Code:

    e3

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.05 A

  • Rated Voltage:

    10 V

  • Terminal Finish:

    Tin (Sn)

  • Width:

    0.8 mm

NFA18SL207V1A45L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NFA18SL207V1A45L is a rectangular pad with a size of 2.5mm x 1.8mm, with a non-solder mask defined (NSMD) pad shape. This is specified in the Murata land pattern recommendation document.
  • The NFA18SL207V1A45L is rated for operation up to 125°C, but it's recommended to derate the current rating above 85°C. It's essential to consult the datasheet and application notes for specific guidance on high-temperature operation.
  • To prevent damage, handle the NFA18SL207V1A45L by the edges, avoid touching the component body, and use an anti-static wrist strap or mat. Also, ensure the PCB is clean and dry before assembly, and avoid applying excessive force or pressure during placement.
  • The ESR of the NFA18SL207V1A45L is not explicitly stated in the datasheet, but it can be estimated based on the DC resistance (Rdc) and the inductance value. Typically, the ESR is around 10-20% of the Rdc value, which is approximately 0.05-0.1 ohms for this component.
  • Yes, the NFA18SL207V1A45L is suitable for switching regulator applications due to its high-frequency characteristics and low core loss. However, it's essential to ensure the component is properly selected and designed into the circuit to meet the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFA18SL207V1A45L Overview

Use the download button to access the NFA18SL207V1A45L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFA18, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
