NFA18SL227V1A45L - Murata Electronics

Description: NFA18SL Series EMI Suppression Filter Cutoff 220MHz 25mA 10V

Download NFA18SL227V1A45L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

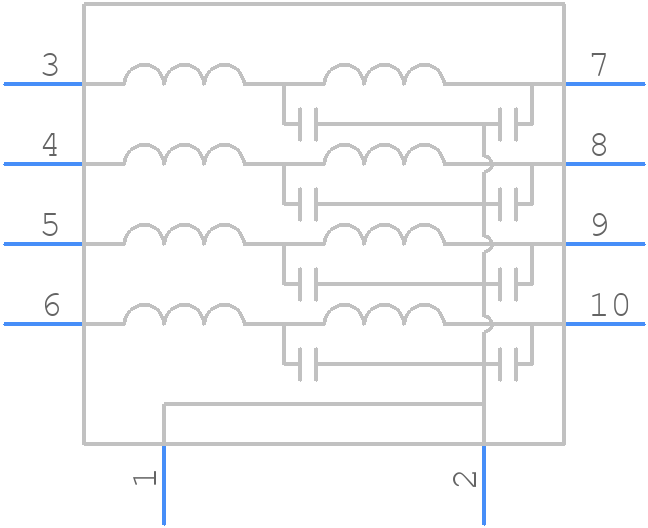

Symbol
NFA18SL227V1A45L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFA18SL227V1A45L - Murata Electronics PCB footprint - Other - Other - NFA18 T=0.65
click to zoom
3D Models
NFA18SL227V1A45L - Murata Electronics - 3D model - Other - NFA18 T=0.65
click to zoom

NFA18SL227V1A45L Details

  • Manufacturer Part Number:

    NFA18SL227V1A45L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    EIA STD PACKAGE SIZE 0603, 10 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    2

  • Capacitance:

    4 µF

  • Filter Type:

    FERRITE CHIP

  • Height:

    0.6 mm

  • Insertion Loss-Max:

    6 dB

  • Insulation Resistance-Min:

    1000 MΩ

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.025 A

  • Rated Voltage:

    10 V

  • Width:

    0.8 mm

NFA18SL227V1A45L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NFA18SL227V1A45L inductor is a rectangular pad with a size of 3.5mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape.
  • The NFA18SL227V1A45L inductor has a maximum operating temperature of 125°C. Ensure good airflow around the component, and consider using a heat sink or thermal pad if the inductor will be operating near its maximum temperature rating.
  • The self-resonant frequency (SRF) of the NFA18SL227V1A45L inductor is not explicitly stated in the datasheet, but it can be estimated to be around 100-150 MHz based on the inductor's physical characteristics and Murata's general guidelines.
  • The NFA18SL227V1A45L inductor is a commercial-grade component, but Murata does offer similar inductors with higher reliability ratings (e.g., AEC-Q200) for automotive and high-reliability applications. Consult with Murata or a distributor for more information.
  • The saturation current of the NFA18SL227V1A45L inductor can be estimated using the inductor's physical characteristics and the core material's properties. A rough estimate can be made using the inductor's DC resistance and the core material's saturation point.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFA18SL227V1A45L Overview

Use the download button to access the NFA18SL227V1A45L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFA18, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
