NFA31CC220S1E4D - Murata Electronics

Description: EMI Filter Circuits 1206 22pF +/-20% 25v DC25 volt

Download NFA31CC220S1E4D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

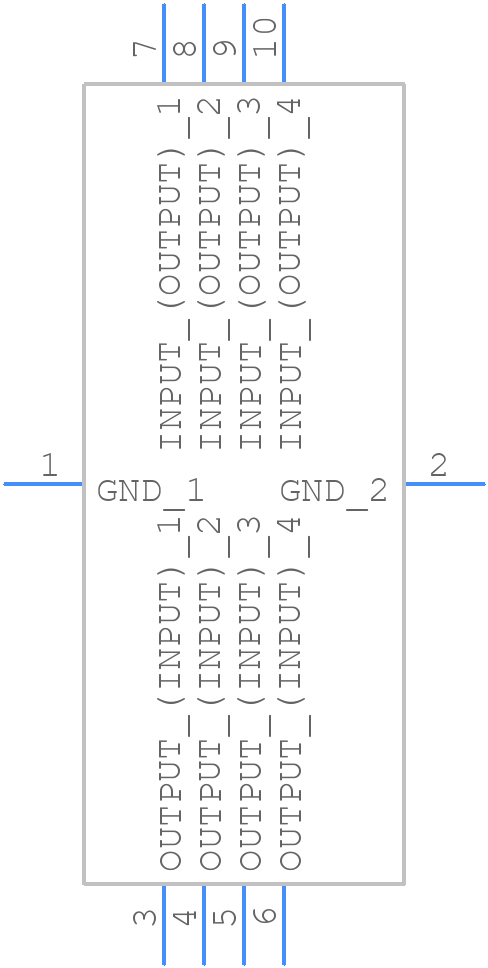

NFA31CC220S1E4D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFA31CC220S1E4D - Murata Electronics PCB footprint - Other - Other - NFA31CC220S1E4D
click to zoom
3D Models
NFA31CC220S1E4D - Murata Electronics - 3D model - Other - NFA31CC220S1E4D
click to zoom

NFA31CC220S1E4D Details

  • Manufacturer Part Number:

    NFA31CC220S1E4D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ARRAY TYPE

  • Capacitance:

    22 µF

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    0.8 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.2 A

  • Rated Voltage:

    25 V

  • Terminal Finish:

    Tin (Sn)

  • Width:

    1.6 mm

NFA31CC220S1E4D Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the NFA31CC220S1E4D capacitor is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • Yes, the NFA31CC220S1E4D capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 hours per axis.
  • Yes, the NFA31CC220S1E4D capacitor is designed to operate in humid environments, with a moisture resistance of 40°C, 90% RH, and 56 days.
  • The ESR of the NFA31CC220S1E4D capacitor is approximately 50 mΩ at 100 kHz and 20°C.
  • Yes, the NFA31CC220S1E4D capacitor is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFA31CC220S1E4D Overview

Use the download button to access the NFA31CC220S1E4D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFA31, or try a keyword search, such as Data Line Filters
