NFE31PT221D1E9L - Murata Electronics

Description: NFE31PT Series EMI Suppression Filter 220pF 50/-20% 6A 25V

Download NFE31PT221D1E9L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

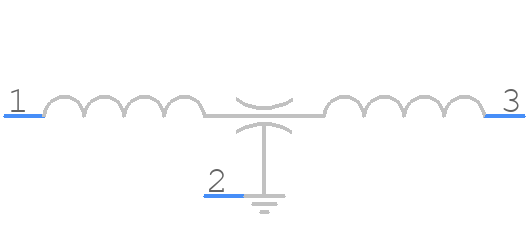

NFE31PT221D1E9L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NFE31PT221D1E9L - Murata Electronics PCB footprint - Other - Other - NFE31 L=3.2 W=3.2 T=3.2-5
click to zoom
3D Models
NFE31PT221D1E9L - Murata Electronics - 3D model - Other - NFE31 L=3.2 W=3.2 T=3.2-5
click to zoom

NFE31PT221D1E9L Details

  • Manufacturer Part Number:

    NFE31PT221D1E9L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    EIA STD PACKAGE SIZE 1206, 3 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    T-TYPE CIRCUIT; BUILT-IN FERRITE BEAD

  • Capacitance:

    220 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.6 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    6 A

  • Rated Voltage:

    25 V

  • Width:

    1.6 mm

NFE31PT221D1E9L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NFE31PT221D1E9L can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
  • To handle the ESD sensitivity of the NFE31PT221D1E9L, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in an ESD-protected environment. Additionally, it is recommended to use ESD-protected packaging and to avoid touching the component pins during handling.
  • The maximum operating temperature range for the NFE31PT221D1E9L is -40°C to +125°C, as specified in the datasheet. However, it is recommended to derate the component's performance at higher temperatures to ensure reliable operation.
  • Yes, the NFE31PT221D1E9L is designed to withstand high-vibration environments, but it is recommended to follow proper mounting and soldering procedures to ensure the component's reliability and performance.
  • To determine the optimal impedance matching for the NFE31PT221D1E9L, it is recommended to use simulation software or consult with a Murata application engineer to determine the optimal impedance matching for the specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFE31PT221D1E9L Overview

Use the download button to access the NFE31PT221D1E9L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFE31, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
